Class: 6-8 T
Width: 350
Adapter: MS08

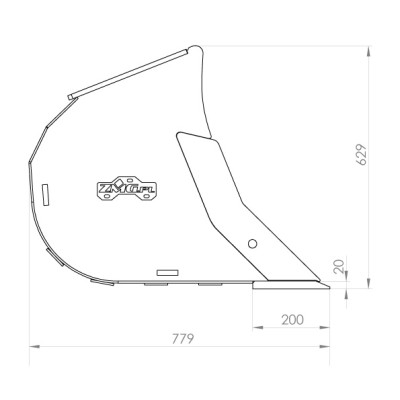

Digging bucket 350mm MS08 class 6-8t

Name: Digging bucket 350mm MS08 class 6-8t
Brand: ZMG
SKU: LK-ZMG4-350-MS08
Price: 2644.50 PLN
Availability: InStock

2,644.50 zł Tax included

In stock Lead time up to 3 business weeks

Other models:

Width

Adapter

Adapter parameters

Adapter compatible with the Lehnhoff system- MS08-without base plate

Reference: AD-WOP-MS08

The AD-WOP-MS08 model delivers MS08 system functionality in a base-plate-free design. This sturdy and precisely manufactured adapter enables fast and trouble-free tool connection in harsh working environments.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Lead time: up to 48 hours
For the machine: 5-6, 6-7, 7-8, 8-9, 9-10
Adapter: MS08
Side plate: 16 S355
Pin diameter: 60
Inner width: 295
Pin spacing: 381
Weight: 28

Go to the adapter product page →

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Specification

	Pin diameter [mm]	Inner width [mm]	Pin spacing* [mm]
MS01	40	185	225
MS01SY	40	185	255
MS03	50	205	283,6
MS03SY	50	205	322
MS08	60	295	381
MS08SY	60	297	434

*In the technical specification, refer to the spacing between the pin and the thrust plate.

Parameters

The main components are made of the following materials and thicknesses:

	MS01		MS01SY		MS03		MS03SY		MS08		MS08SY
	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material	Thickness	Material
Side plate:	10mm	S355	10mm	S355	12mm	S355	12mm	S355	16mm	S355	16mm	S355

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
350	76	100	3
400	82	118	3
450	89	136	4
500	95	155	4
600	108	193	4
700	121	231	5
800	134	269	5
900	147	307	5
1000	160	345	6
1100	173	384	6

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	6 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	12 mm	HB400
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

The LK-ZMG4-350-MS08 is a 350 mm digging bucket created to meet the demands of excavators in the 6–8 t class. It performs well in earthmoving, excavation, grading, and breaking through soils of varying hardness. The Lehnhoff MS08 quick coupler is designed for heavy machines, ensuring secure attachment and rapid tool changes on demanding job sites. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG4

Reference LK-ZMG4-350-MS08

Data sheet

Lead time: up to 3 business weeks
For the machine: 6-7
7-8
Adapter: MS08
Width: 350
Weight without adapter: 76
Capacity: 100
Side/rear plate: 6 S355
Side cutters: 12 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 3
Type of teeth: JCB
