- Class: 2-3 T
- Width: 300
- Adapter: CW05
Reference: AD-WOP-CW05

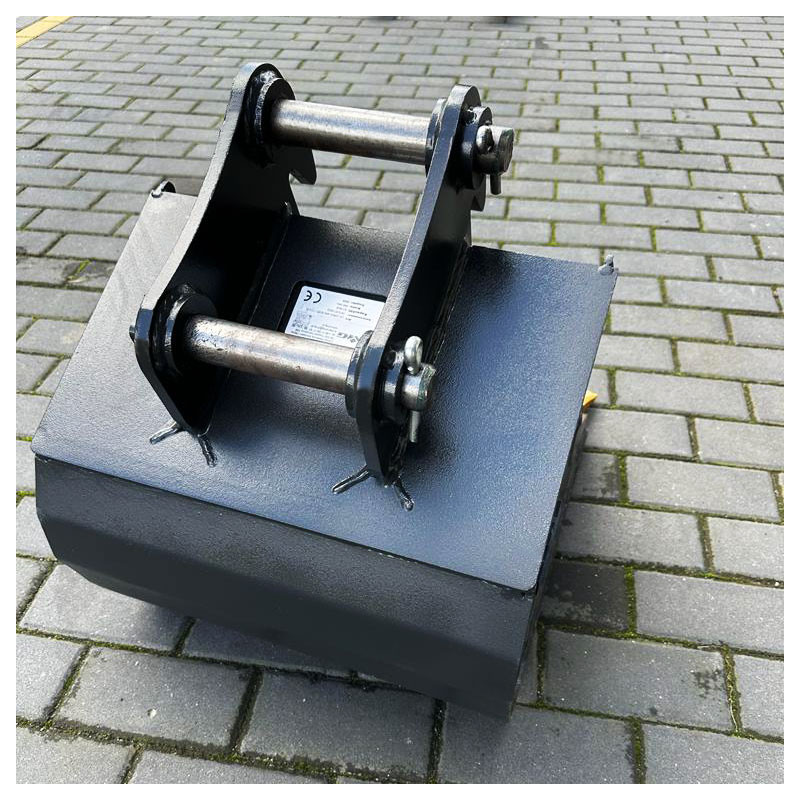

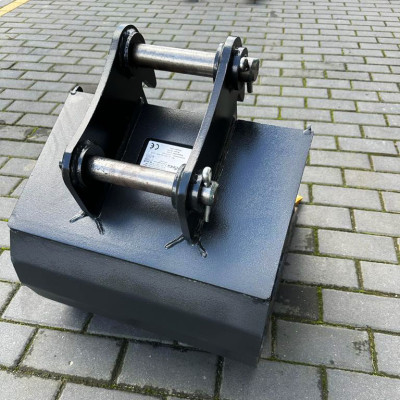

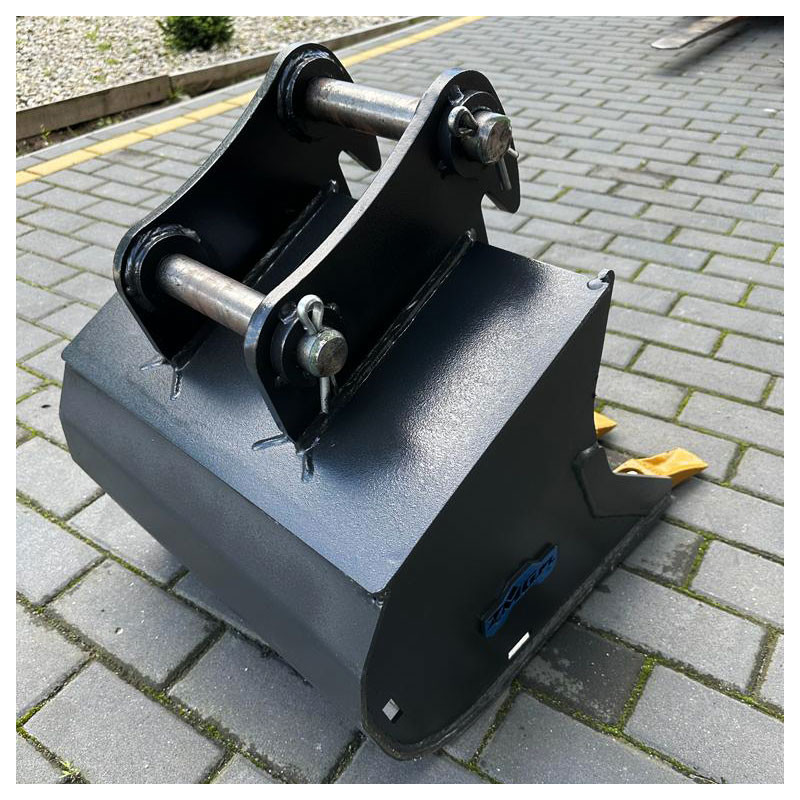

The AD-WOP-CW05 model, designed in line with the Verachtert CW05 system standards, offers high functionality without the use of a base plate. It is lightweight yet very durable, allowing quick tool connection and ensuring reliable machine performance in everyday tasks.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

| Pin diameter [mm] | Inner width [mm] |
Pin spacing [mm] |
|
|---|---|---|---|
| CW05 | 40 | 180 | 200 |
| CW10 | 50 | 320 | 300 |
| CW20/30/40 | 60 | 560 | 475 |
The main components are made of the following materials and thicknesses:
| CW05 | CW10 | CW20/30/40 | ||||
| Thickness | Material | Thickness | Material | Thickness | Material | |
| Side plate: | 20mm | S355 | 20mm | S355 | 35mm | HB400 |
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 250 | 32 | 30 | 2 |
| 300 | 34 | 38 | 3 |
| 350 | 38 | 46 | 3 |
| 400 | 42 | 53 | 3 |
| 450 | 45 | 61 | 4 |
| 500 | 49 | 69 | 4 |
| 550 | 53 | 77 | 4 |
| 600 | 56 | 85 | 4 |
| 700 | 64 | 100 | 4 |
| 800 | 71 | 116 | 5 |
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 5 mm | S355 |
| Roll sheet: | 5 mm | S355 |
| Cutting edge: | 16 mm | HB500 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||
| Teeth: | JCB Mini |

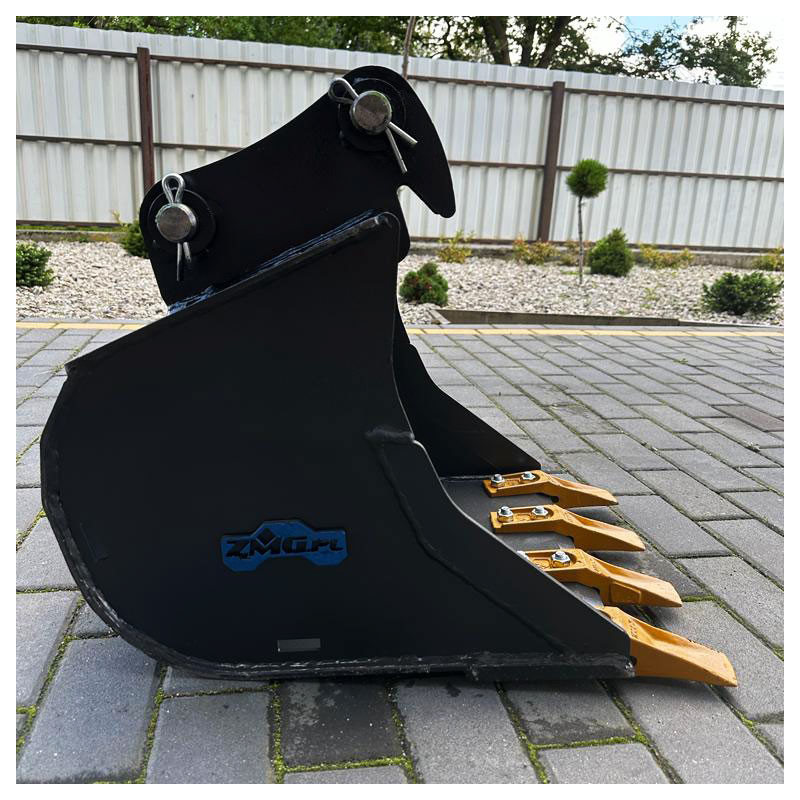

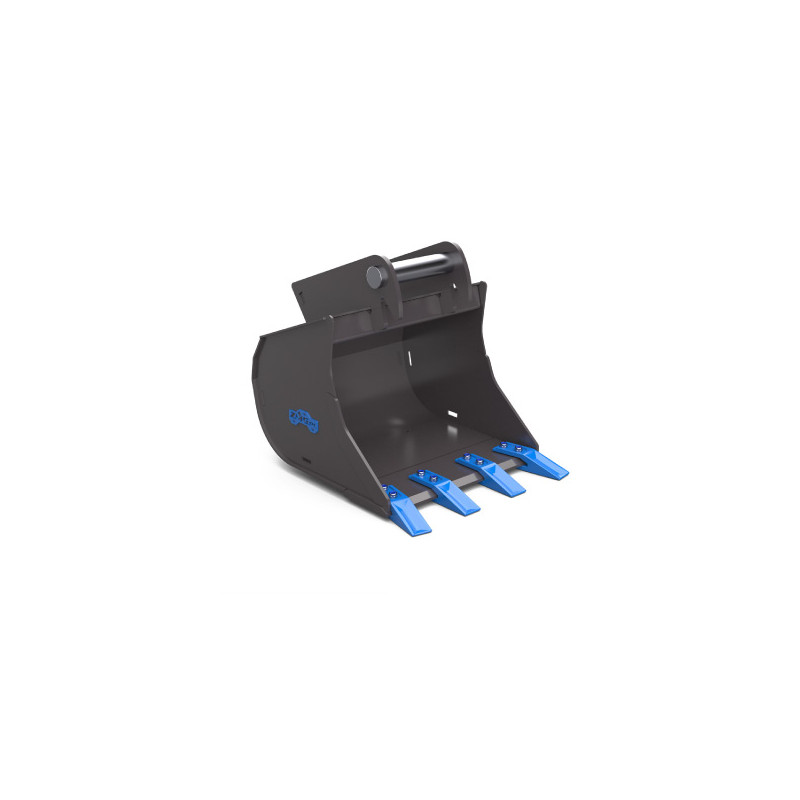

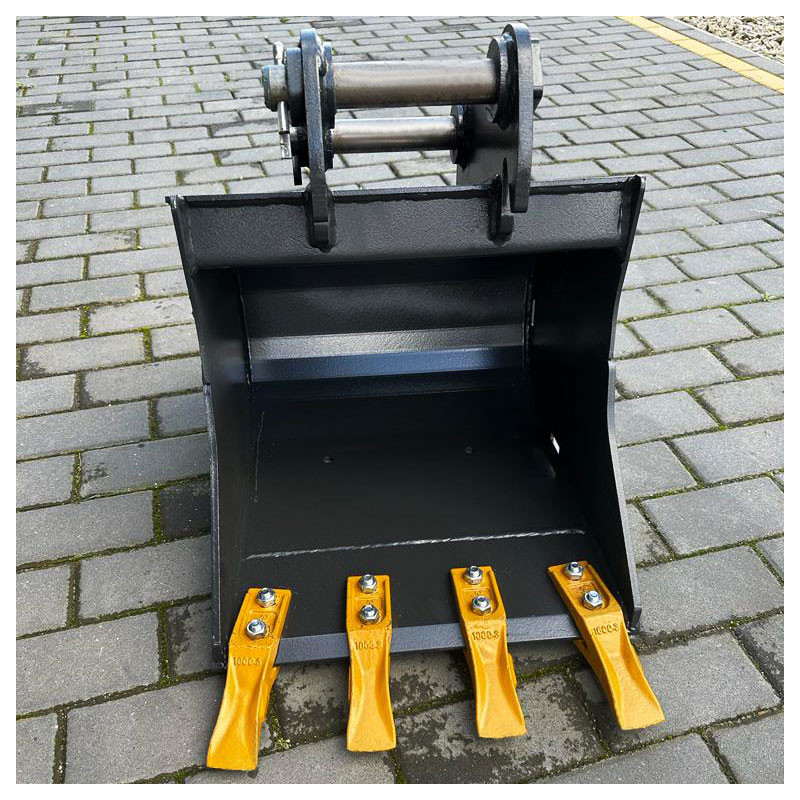

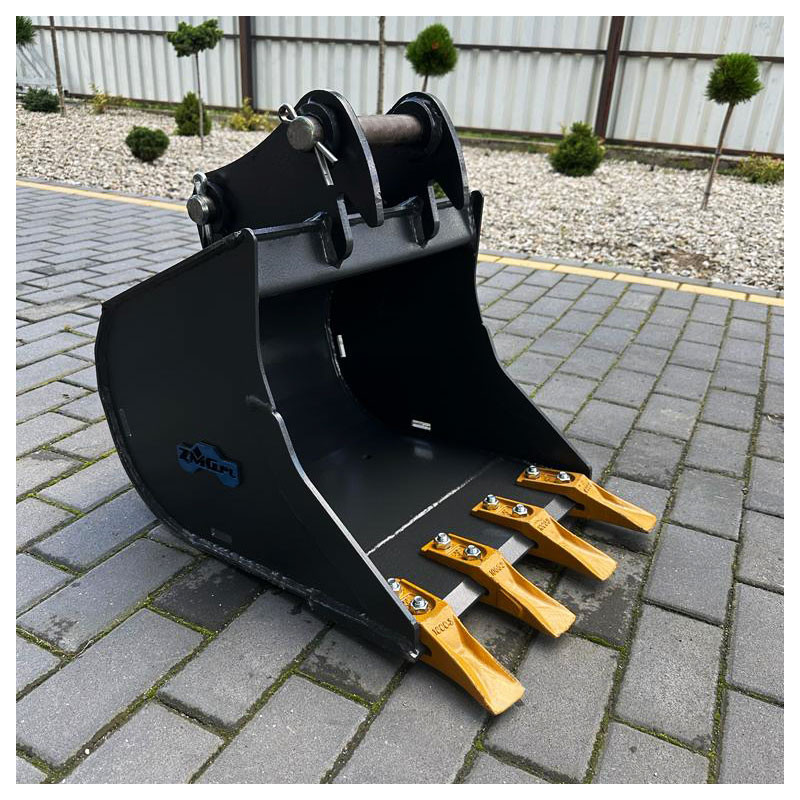

The LK-ZMG2-300-CW05 digging bucket, 300 mm wide, was developed specifically for small excavators in the 2–3 t class. Its design allows efficient foundation trenching, earthmoving, and underground utility installation work. The Verachtert CW05 quick coupler system guarantees a solid and safe machine connection, providing flexibility in attachment selection. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Data sheet
