Class: 0-2 T
Width: 200
Adapter: MS01

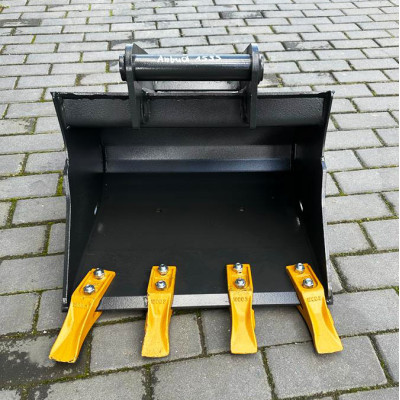

Digging bucket 200mm MS01 class 0-2t

Name: Digging bucket 200mm MS01 class 0-2t
Brand: ZMG
SKU: LK-ZMG1-200-MS01
Price: 783.51 PLN
Availability: InStock

783.51 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
200	21	16	2
250	23	21	2
300	25	27	3
350	28	32	3
400	31	37	3
450	34	42	4
500	37	48	4
550	40	57	4
600	43	61	4
700	46	69	4
800	49	79	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

The LK-ZMG1-200-MS01 series is a 200 mm digging bucket dedicated to mini and compact excavators up to 2 t. Its optimal working width enables efficient foundation work, linear trenching, road construction, and general site operations. The Lehnhoff MS01 quick coupler allows fast and safe attachment changes, minimising downtime on site. Robust build and carefully selected materials make the bucket resistant to mechanical damage, maintaining geometry throughout the product's lifetime.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG1

Reference LK-ZMG1-200-MS01

Data sheet

Lead time: up to 3 business weeks
For the machine: 1-2
Adapter: MS01
Width: 200
Weight without adapter: 21
Capacity: 16
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 2
Type of teeth: JCB Mini
