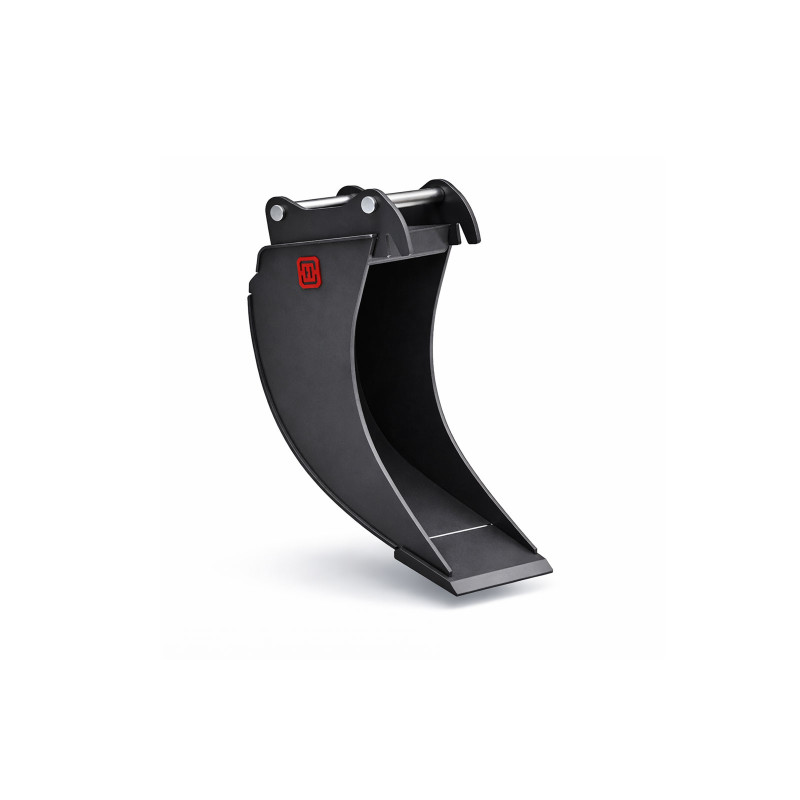

Cable bucket 300mm MS03SY class 4-6t
3,929.73 zł
Tax included
Buckets compatible with the MS03 quick-coupler ensure precise fitting and easy installation. With their reinforced design and optimized geometry, they perform excellently in earthmoving, installation and general construction work.

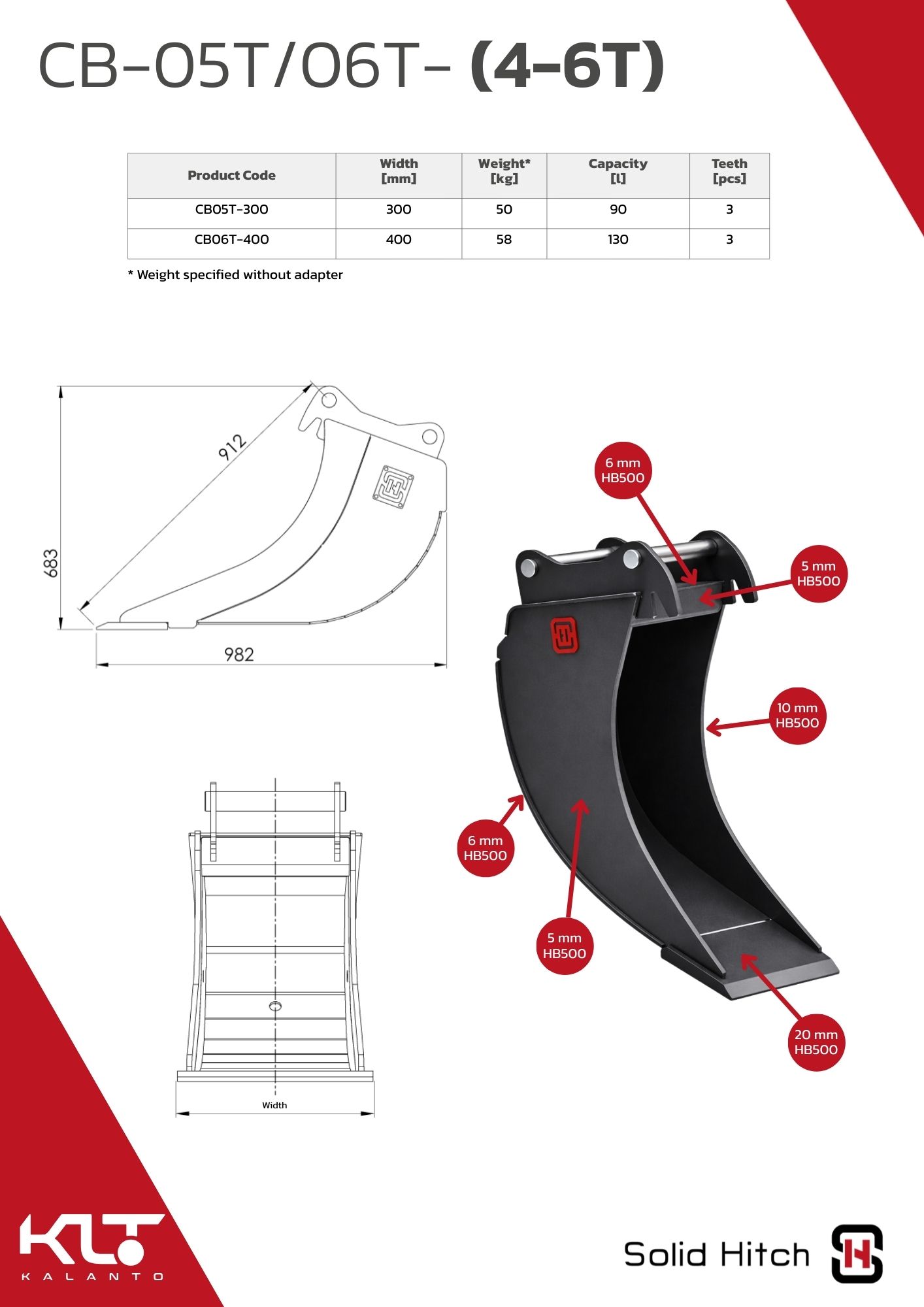

| Width [mm] | Weight* [kg] | Capacity [l] |
|---|---|---|
| 300 | 50 | 90 |
| 400 | 58 | 130 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 10 mm | Hardox 500 Tuf |
| Rear side plate: | 5 mm | Hardox 500 Tuf |
| Roll sheet: | 6 mm | Hardox 500 Tuf |
| Cutting edge: | 20 mm | HB500 |
| Top plate: | 6 mm | Hardox 500 Tuf |
| Bend plate: | 5 mm | Hardox 500 Tuf |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
CB-S4-SH1-300-MS03SY
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 4-5t
5-6t - Adapter
- MS03SY
- Width
- 300mm
- Weight without adapter
- 50kg
- Capacity
- 90 l
- Side/rear plate
- 5mm Hardox 500 Tuf
- Front side plate
- 10mm Hardox 500 Tuf
- Roll sheet
- 6mm Hardox 500 Tuf
- Cutting edge
- 20mm HB 500
- Top plate
- 6mm Hardox 500 Tuf
- Bend plate
- 5mm Hardox 500 Tuf
