Class: 4-6 T
Width: 300
Adapter: S40

Cable bucket 300mm S40 class 4-6t

Name: Cable bucket 300mm S40 class 4-6t
Brand: Solid Hitch
SKU: CB-S4-SH1-300-S40
Price: 3718.17 PLN
Availability: InStock

3,718.17 zł

Tax included

Made to order Lead time: up to 6 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]
300	50	90
400	58	130

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	10 mm	Hardox 500 Tuf
Rear side plate:	5 mm	Hardox 500 Tuf
Roll sheet:	6 mm	Hardox 500 Tuf
Cutting edge:	20 mm	HB500
Top plate:	6 mm	Hardox 500 Tuf
Bend plate:	5 mm	Hardox 500 Tuf

Buckets compatible with S40 mounting are engineered for maximum efficiency and reliability. Their robust geometry and the option for welded or bolt-on teeth make them a perfect choice for trenching, installation and construction work.

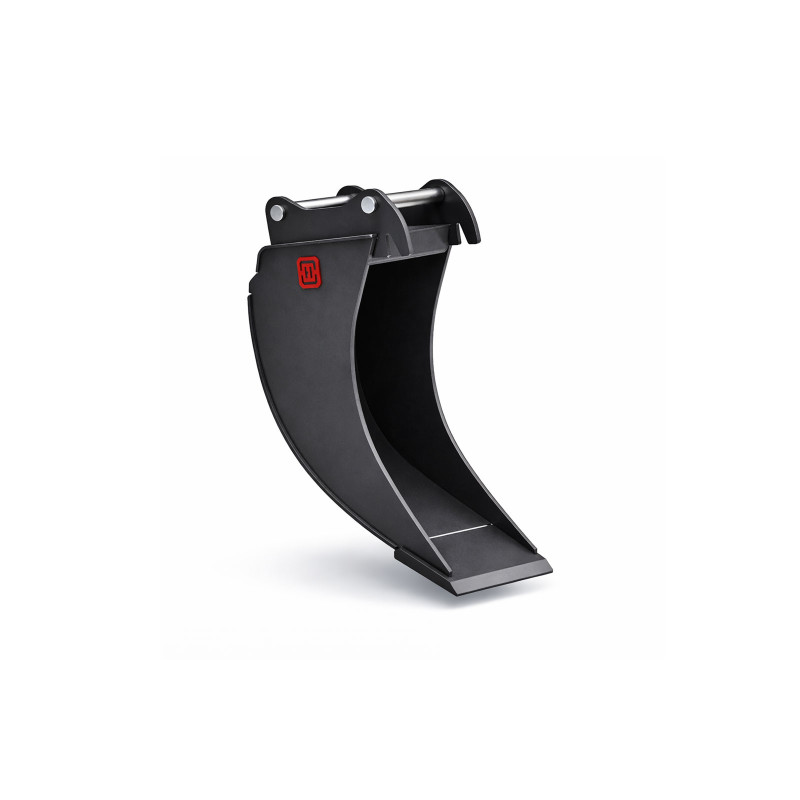

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference CB-S4-SH1-300-S40

Data sheet

Lead time: up to 6 business weeks
For the machine: 4-5
5-6
Adapter: S40
Width: 300
Weight without adapter: 50
Capacity: 90
Side/rear plate: 5 Hardox 500 Tuf
Front side plate: 10 Hardox 500 Tuf
Roll sheet: 6 Hardox 500 Tuf
Cutting edge: 20 HB 500
Top plate: 6 Hardox 500 Tuf
Bend plate: 5 Hardox 500 Tuf
