Digging bucket 500mm MS03SY class 3-4t

4,786.54 zł

Tax included

MS03SY buckets in the 3–4 t class offer a perfect balance of low weight and strength, improving machine efficiency and reducing fuel consumption.

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
300	45	80	3
400	55	100	4
500	63	125	4
600	75	160	4
700	86	185	5
800	96	210	5

* The given bucket weight does not include the weight of the adapter.

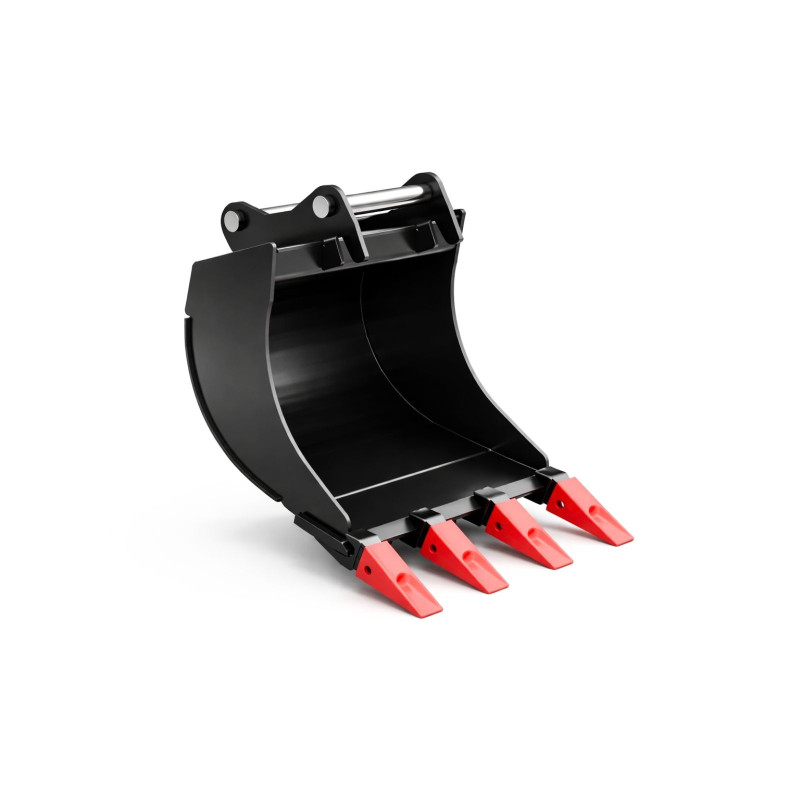

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	10 mm	Hardox 500 Tuf
Rear side plate:	4 mm	Hardox 500 Tuf
Roll sheet:	5 mm	Hardox 500 Tuf
Cutting edge:	16 mm	HB500
Top plate:	6 mm	Hardox 500 Tuf
Bend plate:	4 mm	Hardox 500 Tuf
	Type
Teeth:	CATJ200

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DB-S3-SH1-500-MS03SY

Data sheet

Lead time: up to 6 business days weeks
For the machine: 3-4t
Adapter: MS03SY
Width: 500mm
Weight without adapter: 63kg
Capacity: 125 l
Side/rear plate: 4mm Hardox 500 Tuf
Front side plate: 10mm Hardox 500 Tuf
Roll sheet: 5mm Hardox 500 Tuf
Cutting edge: 16mm HB 500
Top plate: 6mm Hardox 500 Tuf
Bend plate: 4mm Hardox 500 Tuf
Number of teeth: 4pcs
Type of teeth: CATJ200
