Class: 0-2 T
Width: 400
Adapter: MS01SY

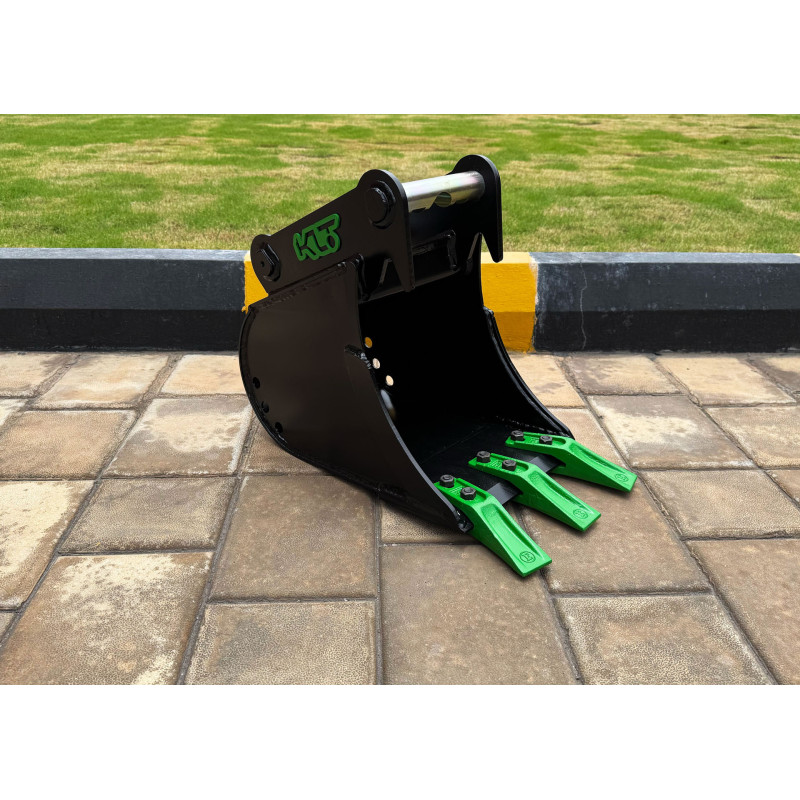

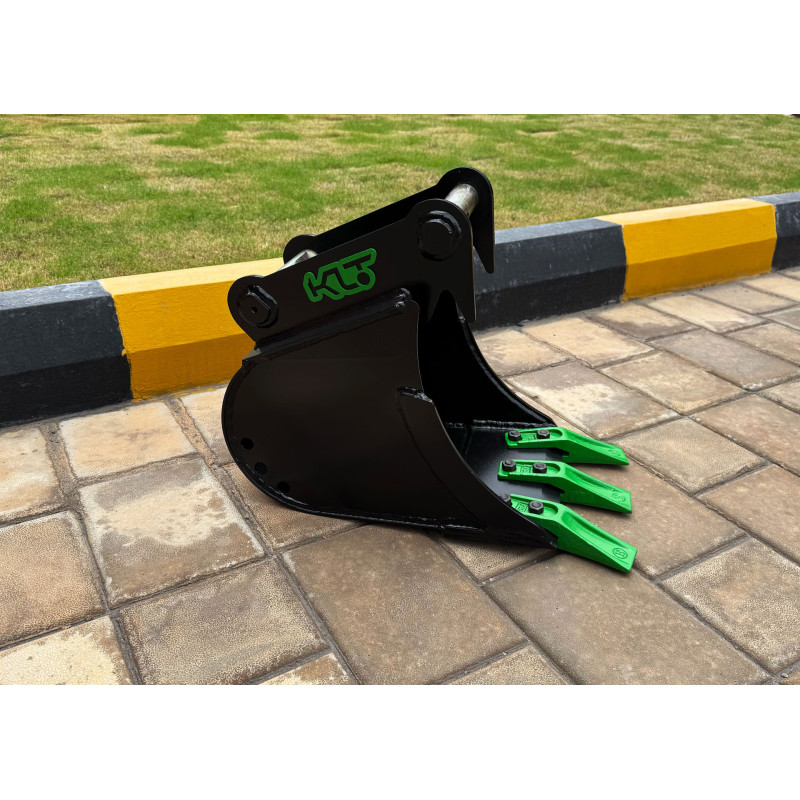

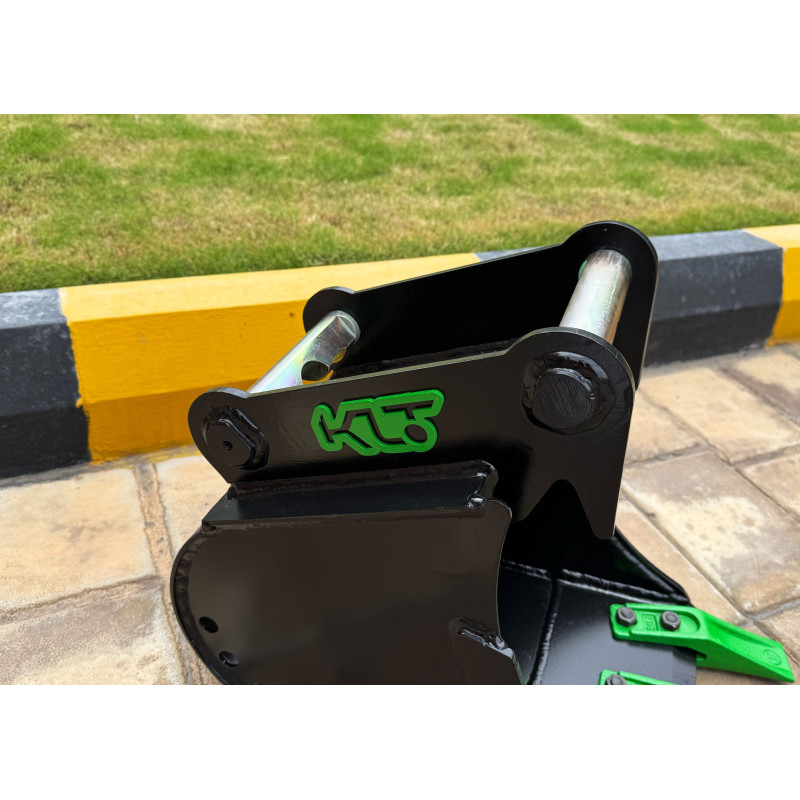

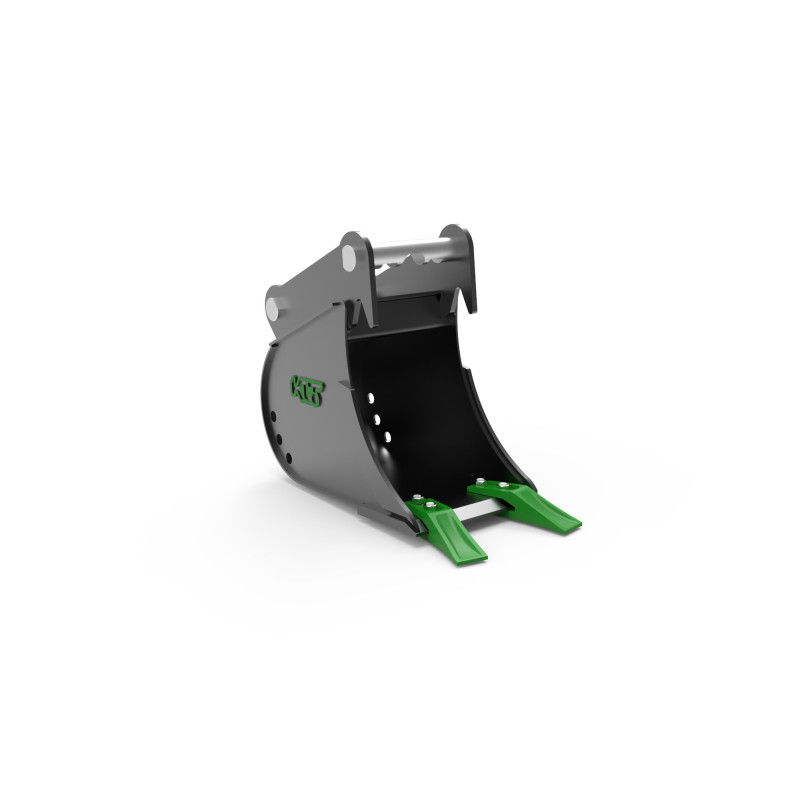

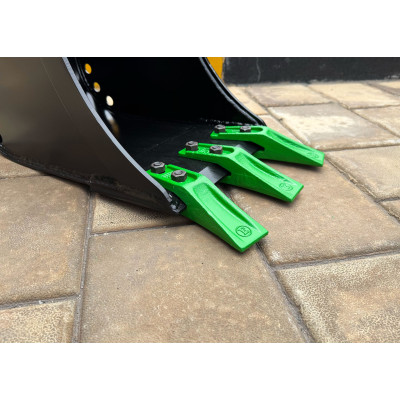

Digging bucket 400mm MS01SY class 0-2t

Name: Digging bucket 400mm MS01SY class 0-2t
Brand: Kalanto
SKU: DBS-S1-V1-400-MS01SY
Price: 1034.43 PLN
Availability: InStock

1,034.43 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	21	25	2
300	25	31	3
400	30	43	3
500	37	55	4
600	42	67	4
800	53	91	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	4 mm	S355
Roll sheet:	4 mm	S355
Cutting edge:	16 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355
	Type
Teeth:	E11.4

Alternative products with a different lead time:

Designed for mini excavators from 0 to 2 tons, the DBS-S1-V1-400-MS01SY bucket is a compact tool ideal for high-precision earthworks in limited spaces. It is well suited for trenching, installation projects, and general outdoor maintenance.
Its high-strength steel body and reinforced zones offer long-lasting durability. The improved geometry increases material handling efficiency, ensuring fast and effective operation in demanding terrain.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S1-V1-400-MS01SY

Data sheet

Lead time: up to 48 hours
For the machine: 0-1
1-2
Adapter: MS01SY
Width: 400
Weight without adapter: 30
Capacity: 43
Side/rear plate: 4 S355
Side cutters: 8 HB400
Roll sheet: 4 S355
Cutting edge: 16x150 HB400
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 3
Type of teeth: E11.4

Specific References

EAN13: 5908159220520
