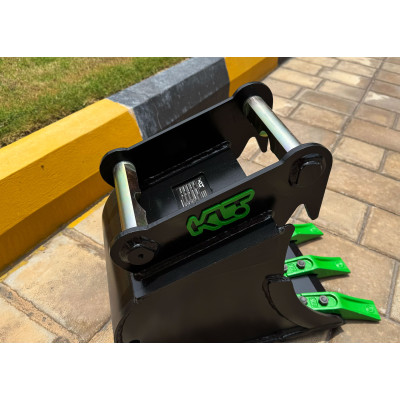

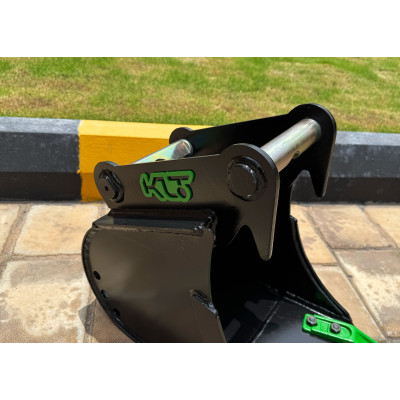

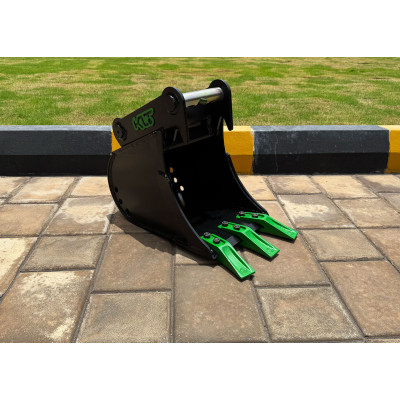

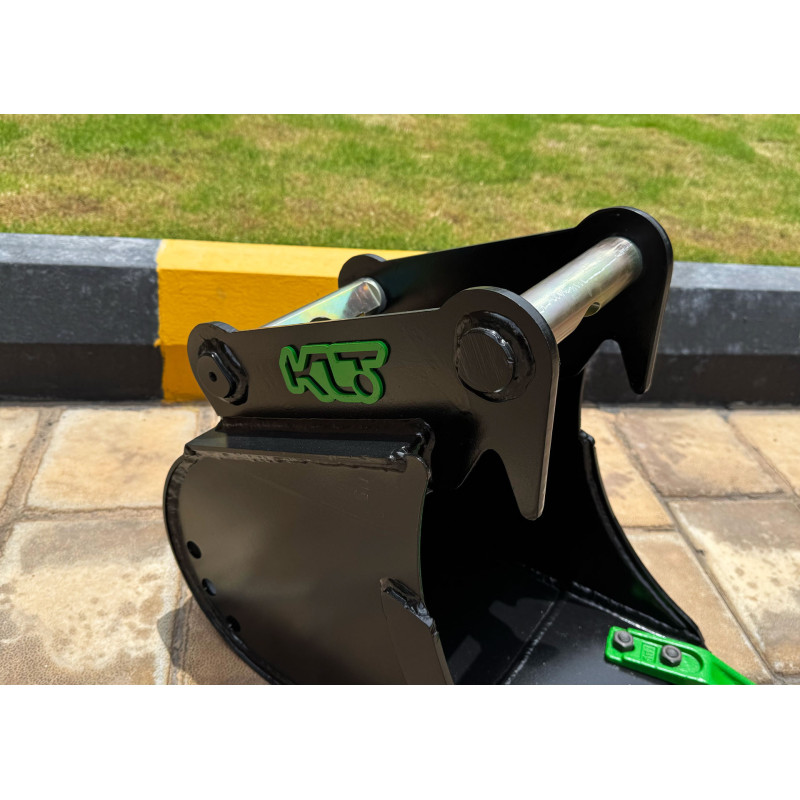

Digging bucket 300mm MS01SY class 0-2t
901.59 zł
Tax included

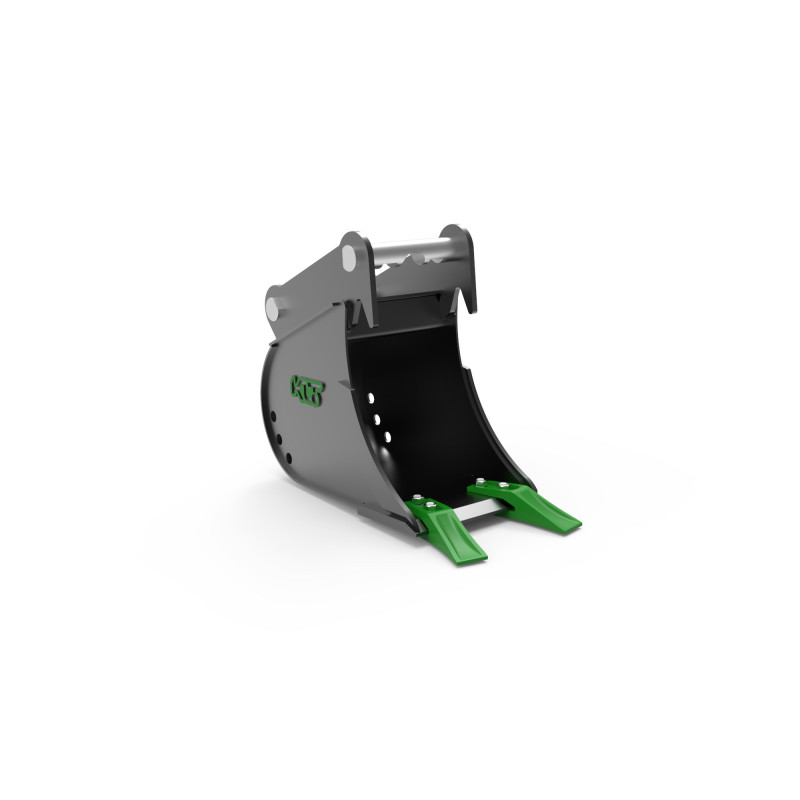

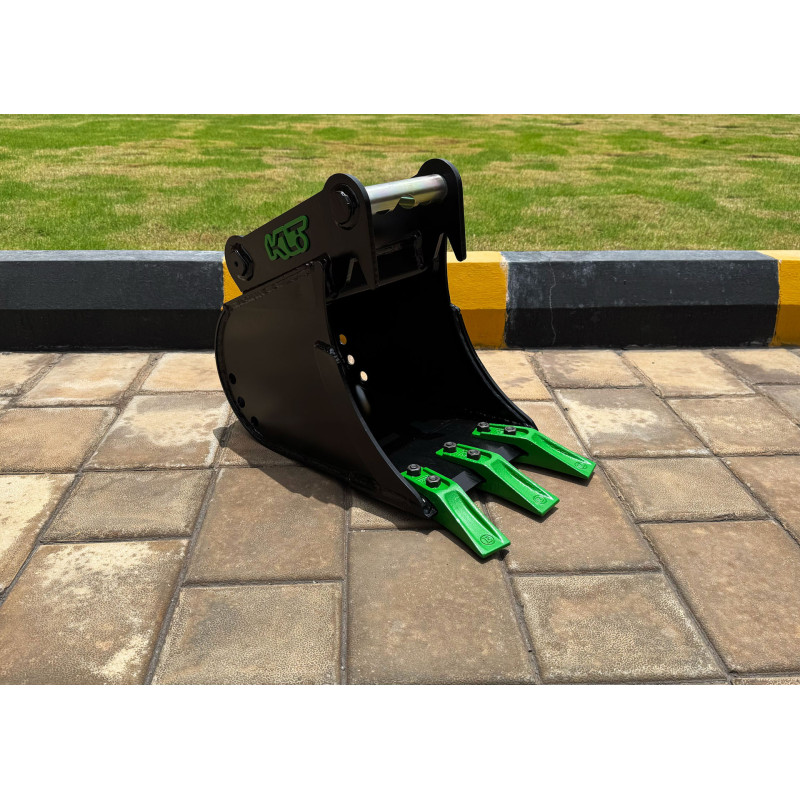

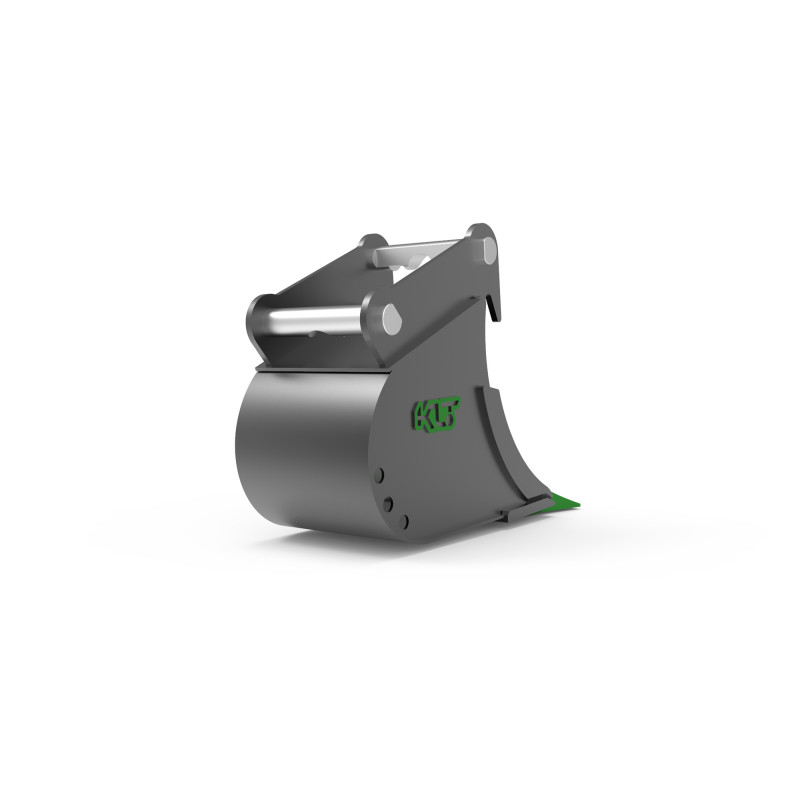

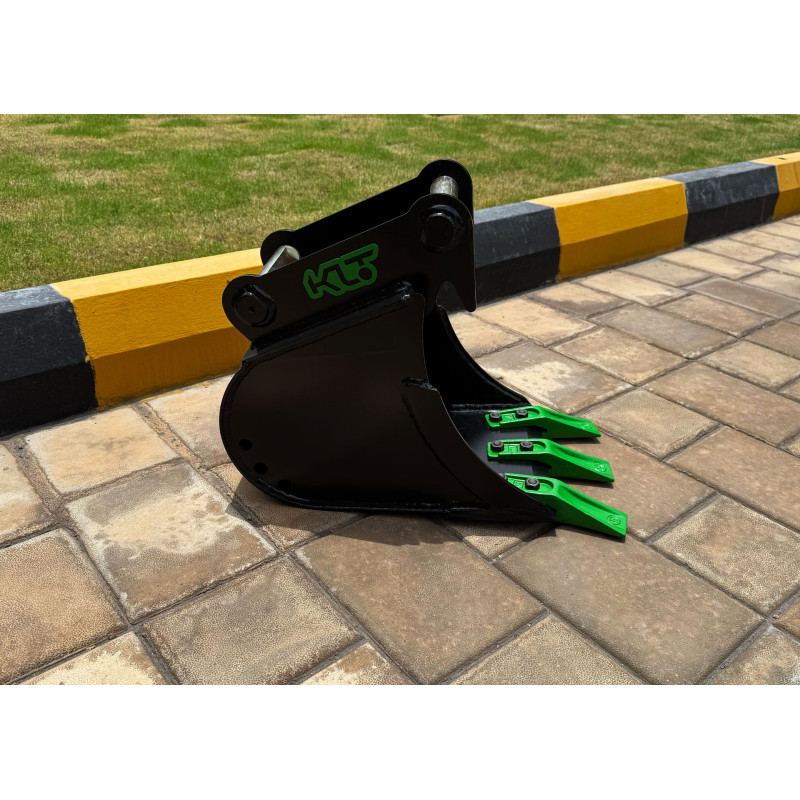

The DBS-S1-V1-300-MS01SY is a small, robust digging bucket dedicated to mini excavators up to 2 tons. Engineered for precise excavation in confined spaces, it performs exceptionally well in linear trenches, utility installations, and landscaping jobs. Constructed from premium steel and strengthened in the most stressed areas, it guarantees exceptional durability. The optimized shape allows smooth loading and unloading of material, improving productivity in difficult ground conditions.

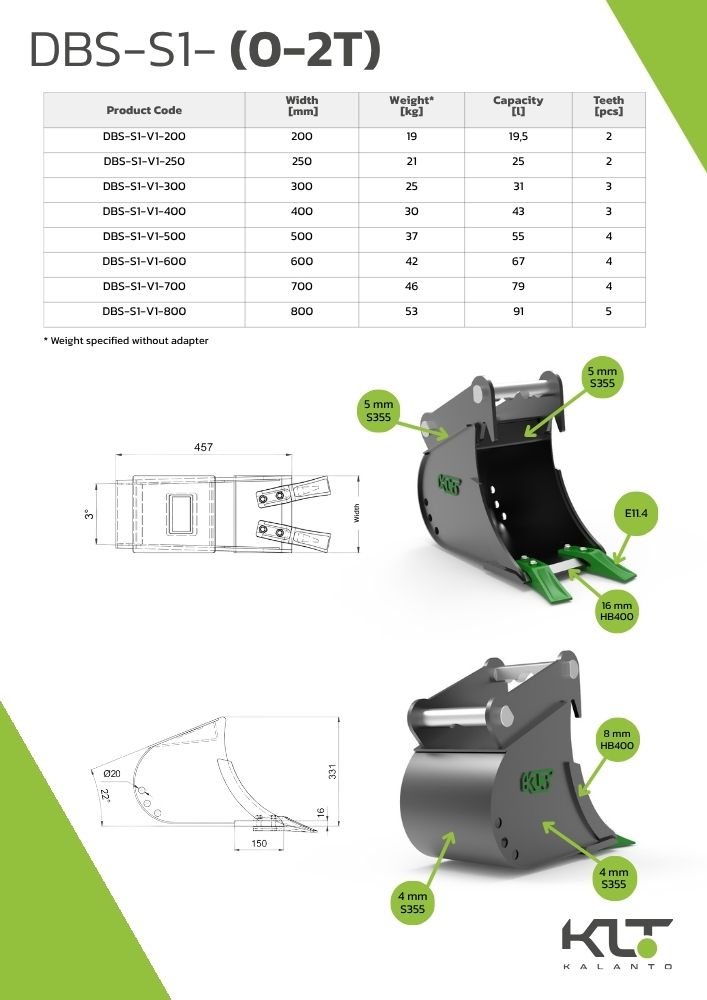

| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 250 | 21 | 25 | 2 |
| 300 | 25 | 31 | 3 |
| 400 | 30 | 43 | 3 |
| 500 | 37 | 55 | 4 |
| 600 | 42 | 67 | 4 |
| 800 | 53 | 91 | 5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Side plate: | 4 mm | S355 |
| Roll sheet: | 4 mm | S355 |
| Cutting edge: | 16 x 150 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 5 mm | S355 |
| Bend plate: | 5 mm | S355 |
| Type | ||

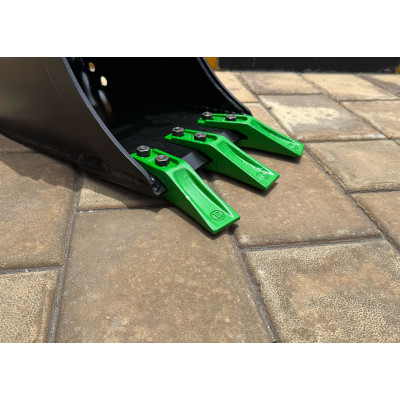

| Teeth: | E11.4 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S1-V1-300-MS01SY
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 0-2t
3-4t - Adapter
- MS01SY
- Width
- 300mm
- Weight without adapter
- 25kg
- Capacity
- 31 l
- Side/rear plate
- 4mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 4mm S355
- Cutting edge
- 16x150mm HB400
- Top plate
- 5mm S355
- Bend plate
- 5mm S355
- Number of teeth
- 3pcs
- Type of teeth
- E11.4
