Class: 6-9 T
Width: 600
Adapter: S50

Digging bucket 600mm S50 class 8-11t

Name: Digging bucket 600mm S50 class 8-11t
Brand: ZMG
SKU: LK-ZMG5-600-S50
Price: 4412.01 PLN
Availability: InStock

4,412.01 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
400	124	143	3
500	142	190	3
600	159	240	4
700	177	292	4
800	194	344	4
900	212	397	5
1000	230	450	5
1100	247	502	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	8 mm	S355
Front side plate:	12 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Top plate:	12 mm	S355
Bend plate:	8 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	CAT J200

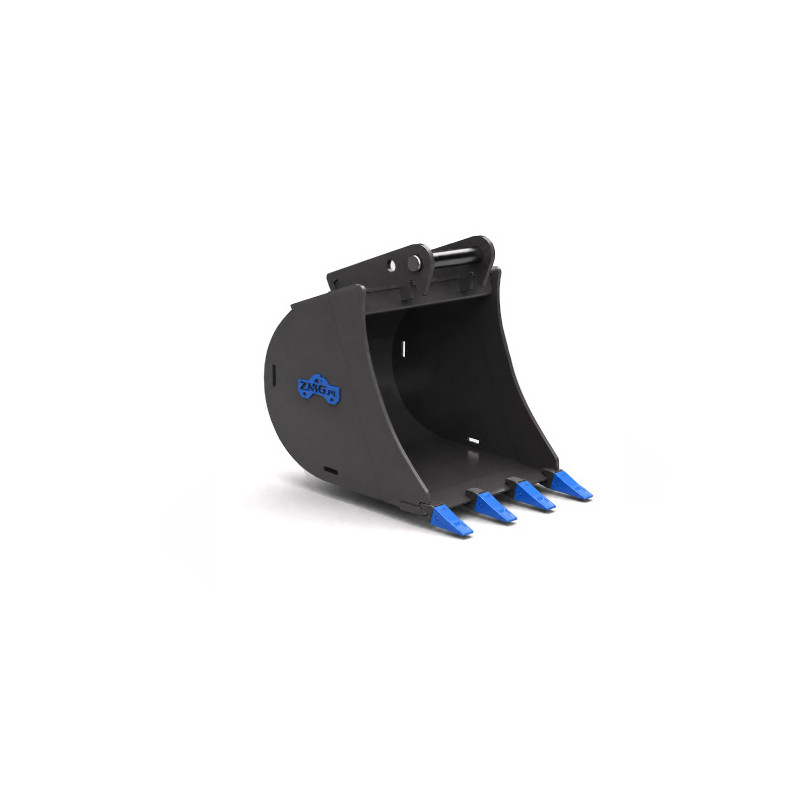

The LK-ZMG5-600-S50 digging bucket with a working width of 600 mm is a sturdy tool designed for heavy excavators in the 8–11 t class. It is perfectly suited for foundation excavation, earthmoving, and general construction tasks requiring both precision and efficiency. The S50 adapter is designed for the largest construction-class machines, providing stable and safe mounting of heavy working attachments. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG5

Reference LK-ZMG5-600-S50

Data sheet

Lead time: up to 3 business weeks
For the machine: 8-9
9-10
10-11
Adapter: S50
Width: 600
Weight without adapter: 159
Capacity: 240
Side/rear plate: 8 S355
Front side plate: 12 S355
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 12 S355
Bend plate: 8 S355
Number of teeth: 4
Type of teeth: CAT J200
