Class: 4-6 T
Width: 500
Adapter: MS03SY

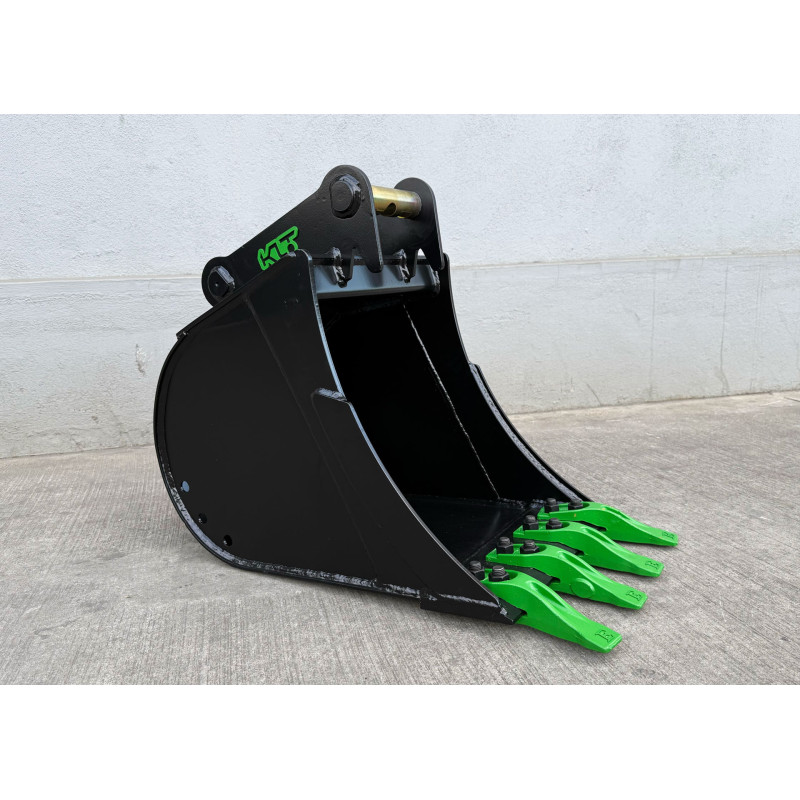

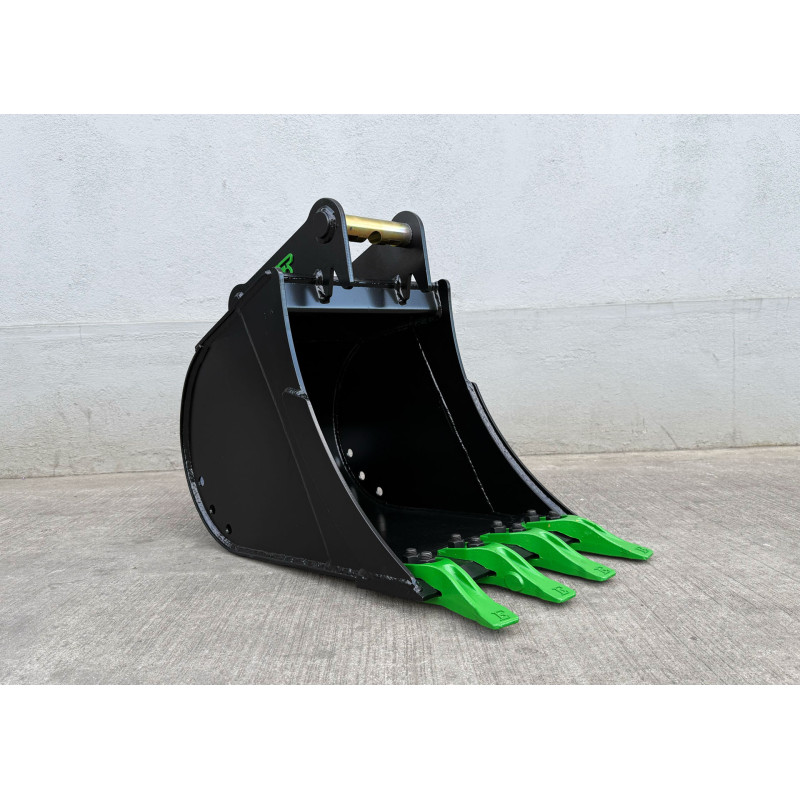

Digging bucket 500mm MS03SY class 4-6t

Name: Digging bucket 500mm MS03SY class 4-6t
Brand: Kalanto
SKU: DBS-S4-V1-500-MS03SY
Price: 2521.50 PLN
Availability: InStock

2,521.50 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	10mm	S355
Rear side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 x 150 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	8 mm	S355
Bend plate:	5 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Alternative products with a different lead time:

The DBS-S4-V1-500-MS03SY bucket has been engineered for excavators in the 4–6 ton category that frequently perform demanding soil operations. Its robust build enables efficient deep digging, foundation work, pipeline installation and other heavy earthmoving tasks.Perfect balance and durable construction guarantee stability and efficiency even during high-load applications.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S4-V1-500-MS03SY

Data sheet

Lead time: up to 48 hours
For the machine: 4-5
5-6
Adapter: MS03SY
Width: 500
Weight without adapter: 85
Capacity: 132
Side/rear plate: 5 S355
Front side plate: 10 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 HB400
Cutting edge: 20x150 HB400
Top plate: 8 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: E25

Specific References

EAN13: 5908159221237
