Class: 2-3 T
Width: 500
Adapter: M03

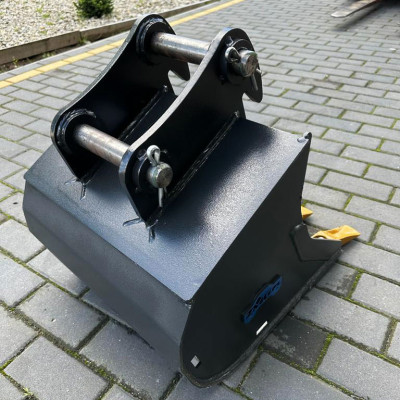

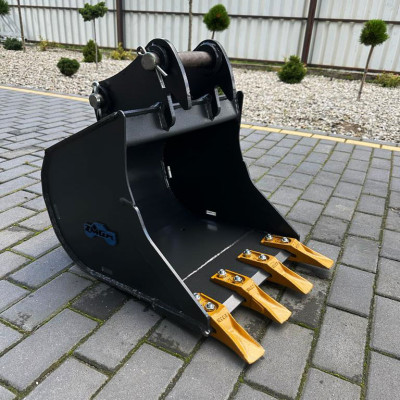

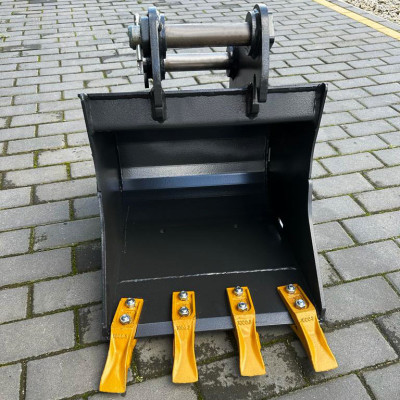

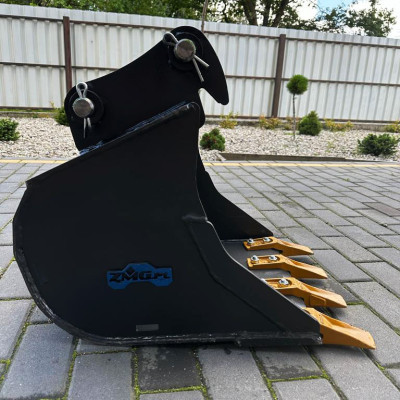

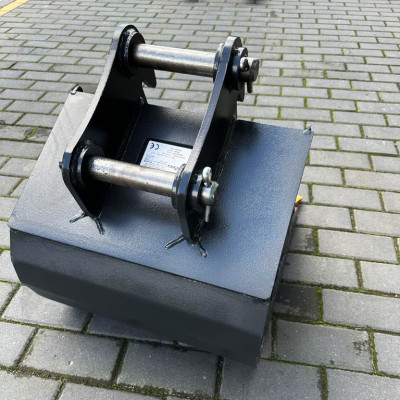

Digging bucket 500mm M03 class 2-3t

Name: Digging bucket 500mm M03 class 2-3t
Brand: ZMG
SKU: LK-ZMG2-500-M03
Price: 1740.45 PLN
Availability: InStock

1,740.45 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	32	30	2
300	34	38	3
350	38	46	3
400	42	53	3
450	45	61	4
500	49	69	4
550	53	77	4
600	56	85	4
700	64	100	4
800	71	116	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	16 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	5 mm	S355
Bend plate:	5 mm	S355

	Type
Teeth:	JCB Mini

Model LK-ZMG2-500-M03 is a professional 500 mm digging bucket intended for small excavators in the 2–3 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The Martin M03 adapter (compatible with SW10, CM30) ensures wide compatibility with machines equipped with this popular quick coupler system. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2

Reference LK-ZMG2-500-M03

Data sheet

Lead time: up to 3 business weeks
For the machine: 2-3
Adapter: M03
Width: 500
Weight without adapter: 49
Capacity: 69
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Cutting edge: 16 HB500
Top plate: 5 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB Mini
