Class: 3-4 T
Width: 450
Adapter: Without adapter

Digging bucket 450mm without adapter class 3-4t

Digging bucket 450mm without adapter class 3-4t

Name: Digging bucket 450mm without adapter class 3-4t
Brand: ZMG
SKU: LK-ZMG2-5-450-WOA
Price: 1735.53 PLN
Availability: InStock

1,735.53 zł

Tax included

In stock Lead time: up to 3 business weeks

Other models:

Width

Adapter

Specification

Width [mm]	Weight* [kg]	Capacity [l]	Teeth [pcs]
250	42	44	2
300	47	55	3
350	52	66	3
400	57	78	3
450	62	90	4
500	67	102	4
600	79	125	4
700	89	150	5
800	100	174	5
900	110	211	5

* The given bucket weight does not include the weight of the adapter.

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Side plate:	5 mm	S355
Roll sheet:	5 mm	S355
Cutting edge:	20 mm	HB500
Side cutters:	8 mm	HB400
Top plate:	6 mm	S355
Bend plate:	5 mm	S355
Roll sheet reinforcement:	5 mm	S355

	Type
Teeth:	JCB

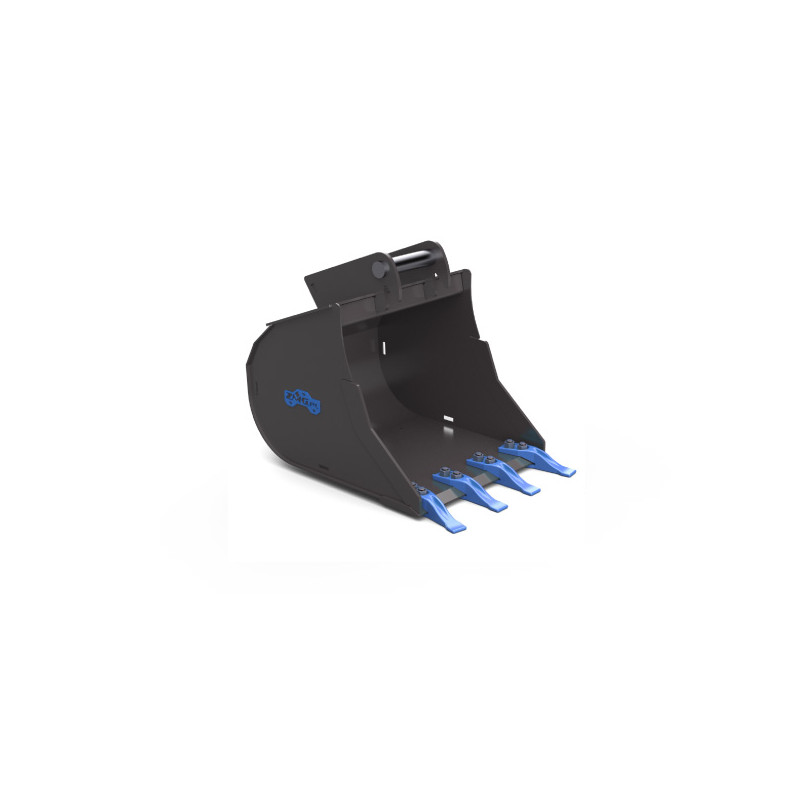

Model LK-ZMG2-5-450-WOA is a professional 450 mm digging bucket intended for excavators in the 3–4 t class. It excels in excavation work, soil removal, trenching, and all types of civil engineering operations on construction sites. The adapterless version is designed for direct mounting on the excavator arm, eliminating intermediate components and reducing total attachment weight. High-grade S355 steel construction and precision welds ensure long bucket life even under intensive operating conditions.

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

LK-ZMG2-5

Reference LK-ZMG2-5-450-WOA

Data sheet

Lead time: up to 3 business weeks
For the machine: 3-4
Adapter: Without adapter
Width: 450
Weight without adapter: 62
Capacity: 90
Side/rear plate: 5 S355
Side cutters: 8 HB400
Roll sheet: 5 S355
Rear wear strips: 5 S355
Cutting edge: 20 HB500
Top plate: 6 S355
Bend plate: 5 S355
Number of teeth: 4
Type of teeth: JCB
