Class: 6-9 T
Width: 400
Adapter: MS08SY

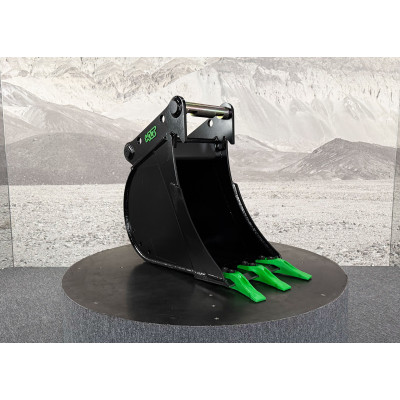

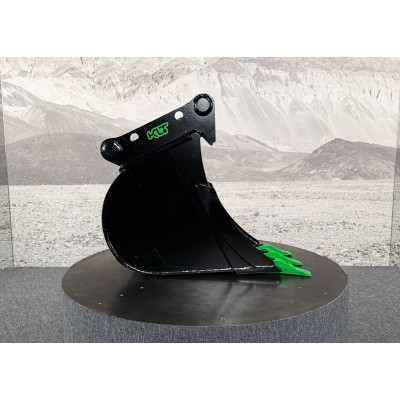

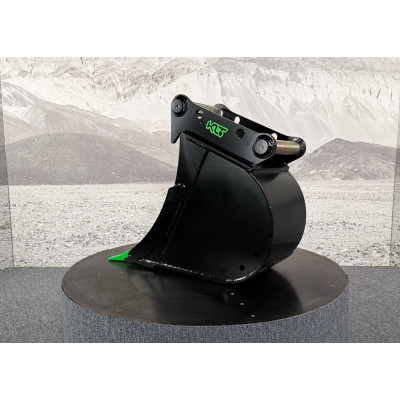

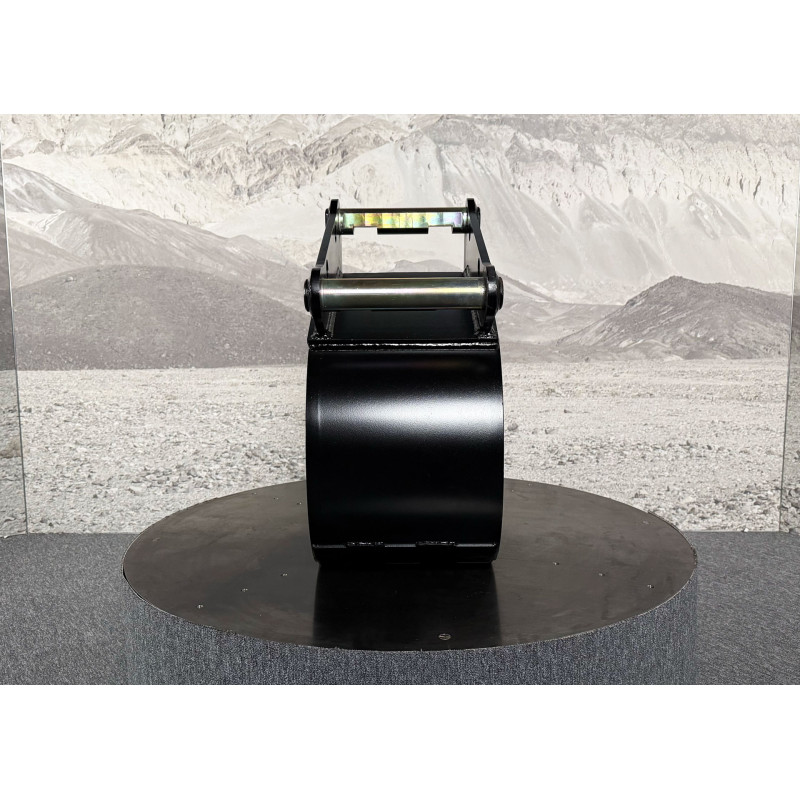

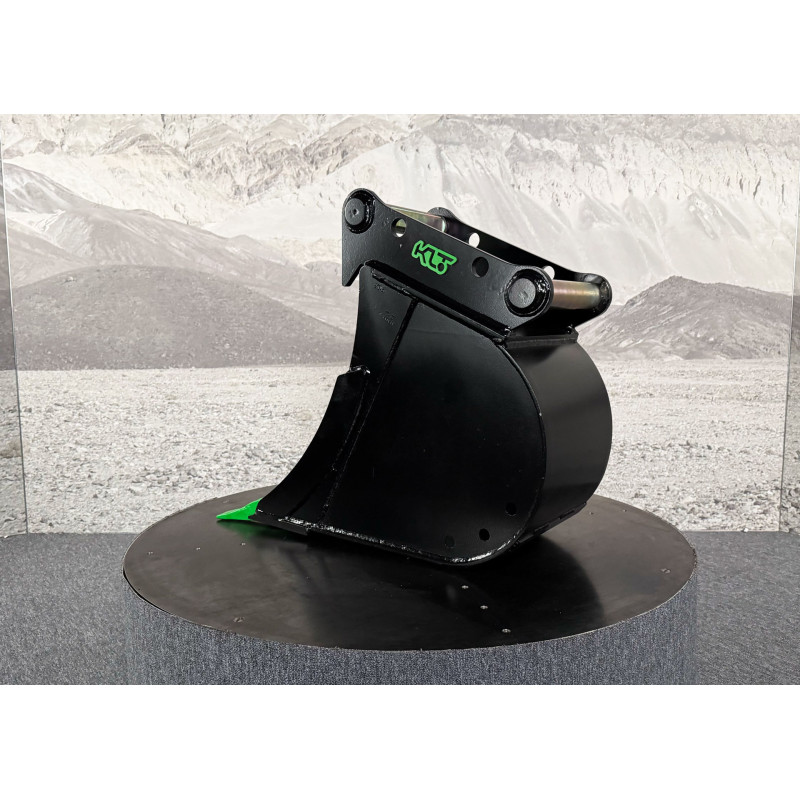

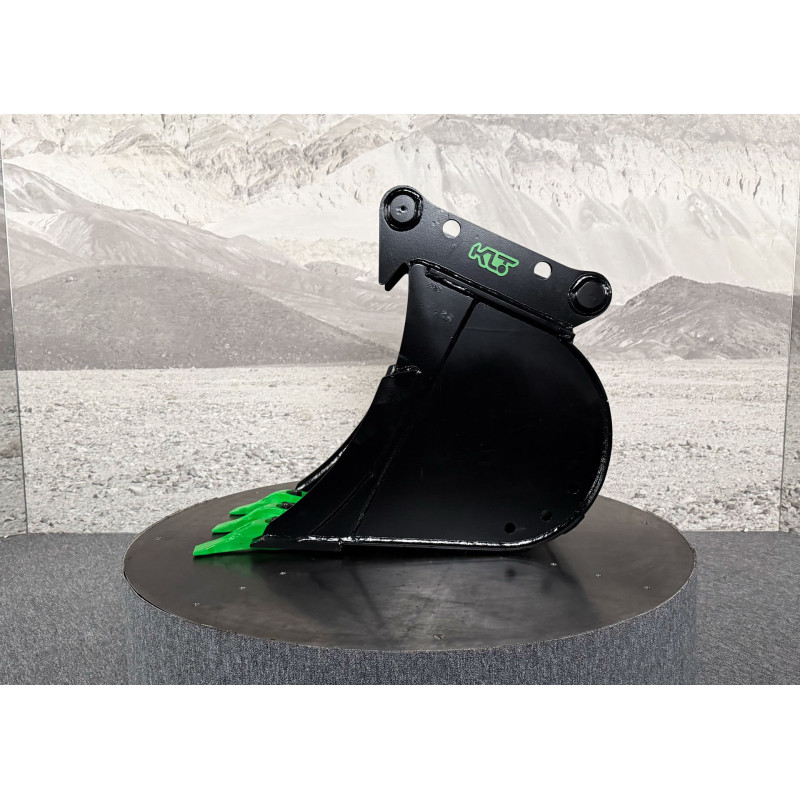

Digging bucket 400mm MS08SY class 6-9t

Name: Digging bucket 400mm MS08SY class 6-9t
Brand: Kalanto
SKU: DBS-S5-V1-400-MS08SY
Price: 2851.14 PLN
Availability: InStock

2,851.14 zł

Tax included

In stock Lead time: up to 48 hours

Other models:

Width

Adapter

Parameters

The main components are made of the following materials and thicknesses:

	Thickness	Material
Front side plate:	12mm	S355
Rear side plate:	6 mm	S355
Roll sheet:	6 mm	S355
Cutting edge:	20 x 200 mm	HB400
Side cutters:	8 mm	HB400
Top plate:	12 mm	S355
Bend plate:	10 mm	S355
Rear wear strips:	5 mm	HB400
	Type
Teeth:	E25

Alternative products with a different lead time:

up to 6 business weeks Solid Hitch 7,002.64 zł

The DBS-S5-V1-400-MS08SY bucket was created for long-term, intensive earthmoving tasks performed by medium and heavy excavators. Its large capacity allows fast soil removal and efficient material transport. It is a tool that meets the expectations of operators working in tough, clay, rocky or hard soils requiring exceptional strength.

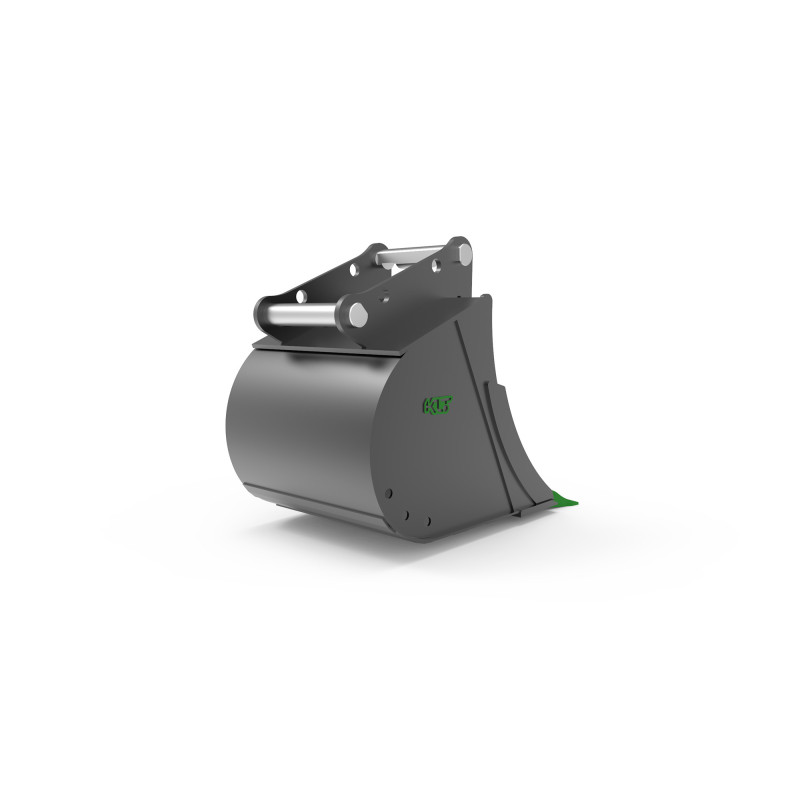

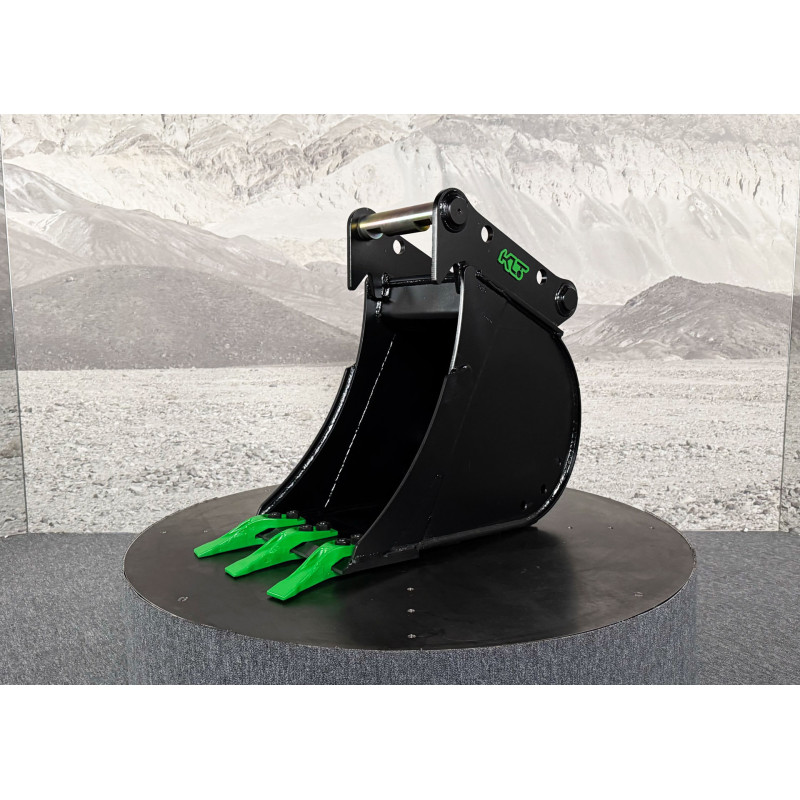

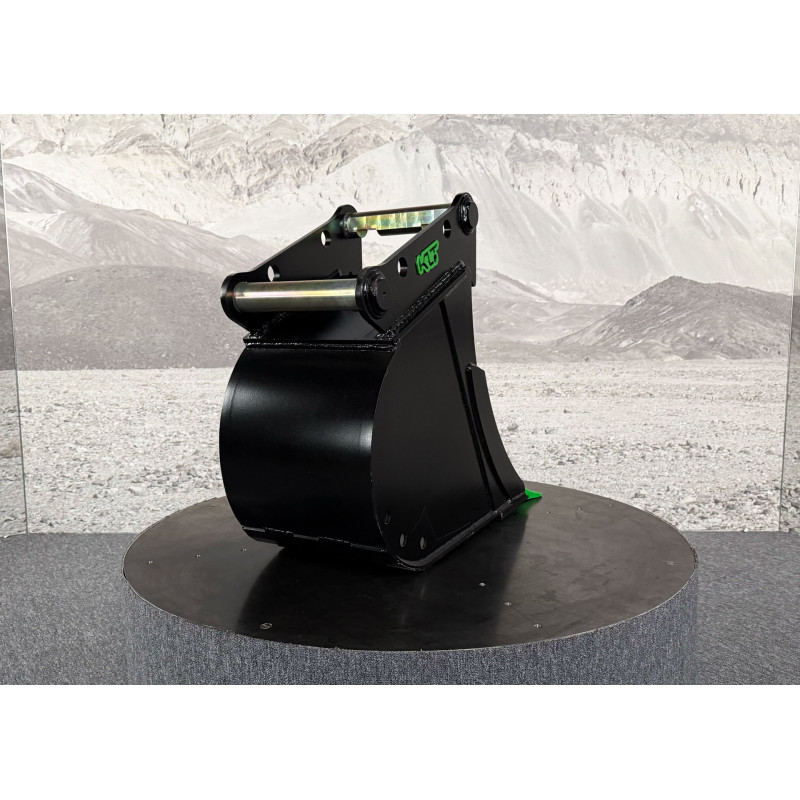

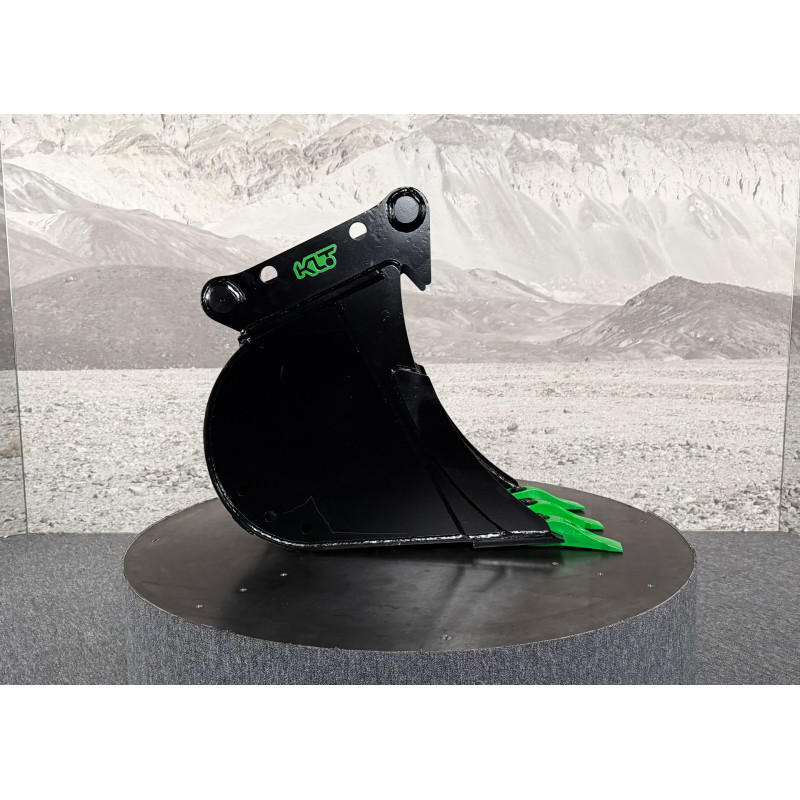

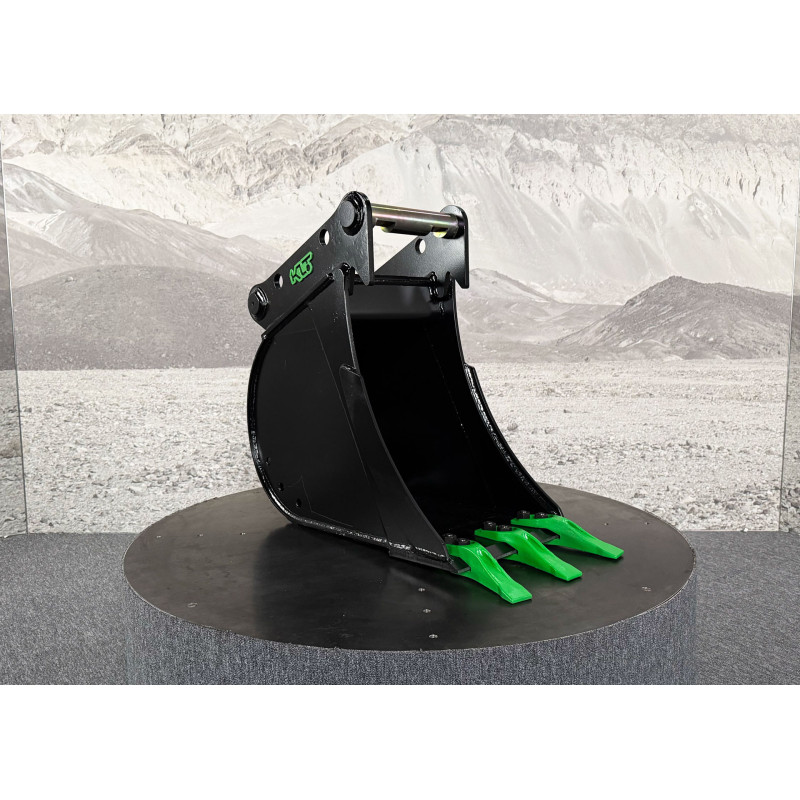

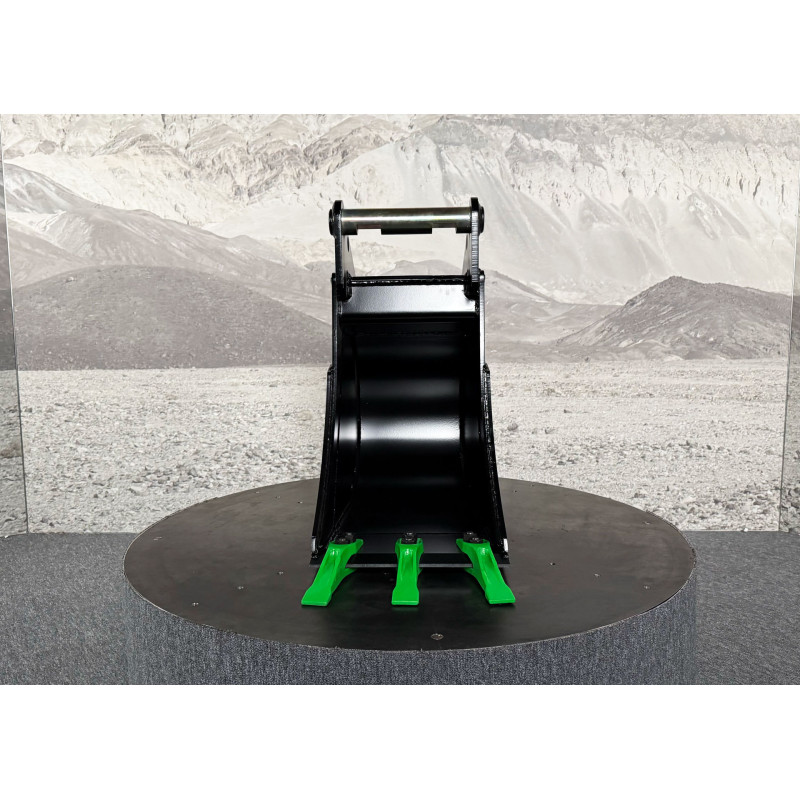

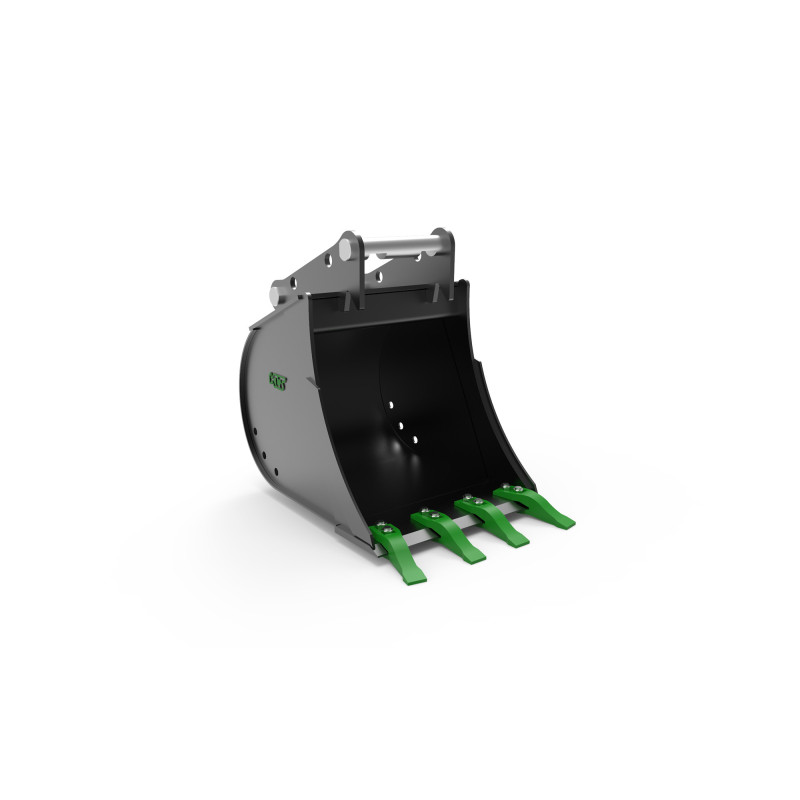

**The image is for illustrative purposes only. The order refers to the product described in the offer.

Description
Product Details

The product is manufactured in accordance with applicable quality and safety standards, including:

DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020

Reference DBS-S5-V1-400-MS08SY

Data sheet

Lead time: up to 48 hours
For the machine: 6-7
7-8
8-9

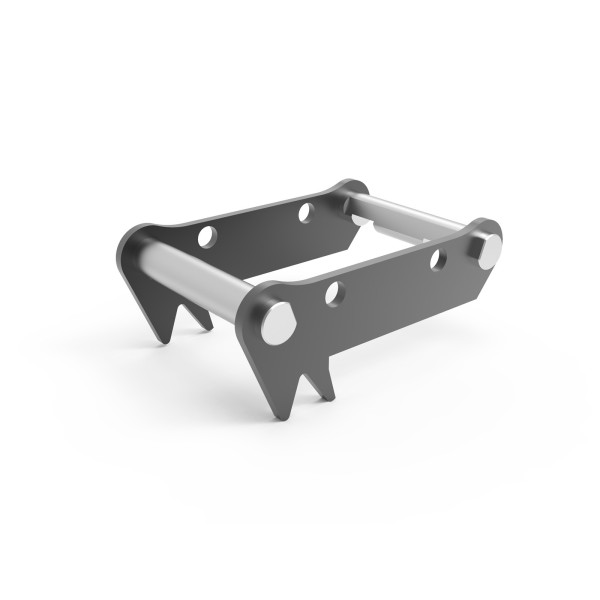

Adapter: MS08SY
Width: 400
Weight without adapter: 100
Capacity: 115
Side/rear plate: 6 S355
Front side plate: 12 S355
Side cutters: 8 HB400
Roll sheet: 6 S355
Rear wear strips: 5 HB400
Cutting edge: 20x200 HB400
Top plate: 12 S355
Bend plate: 10 S355
Number of teeth: 3
Type of teeth: E25

Specific References

EAN13: 5908159221497
