Digging bucket 1000mm S45 class 6-9t
4,926.15 zł
Tax included
Strong and spacious, the DBS-S5-V1-1000-S45 bucket is a professional tool designed for the most difficult excavation tasks. Its construction ensures full control over the digging process regardless of soil conditions.
It is ideal for large construction projects requiring maximum reliability and operational stability.
| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
| 300 | 89 | 78 | 3 |
| 400 | 100 | 115 | 3 |
| 500 | 116 | 154 | 4 |
| 600 | 131 | 193 | 4 |
| 800 | 164 | 274 | 5 |
| 1000 | 195 | 356 | 5 |

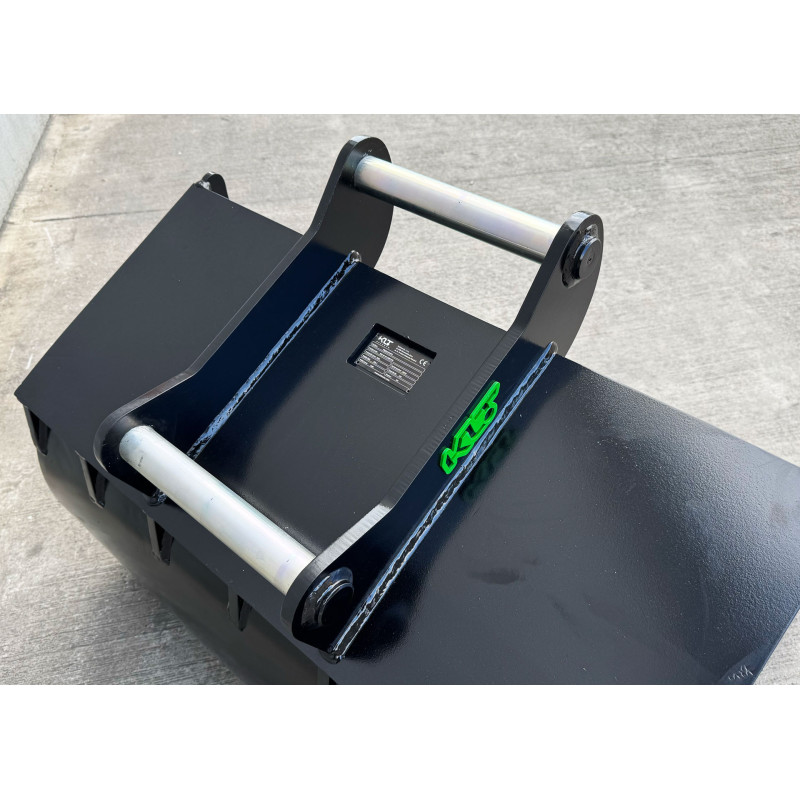

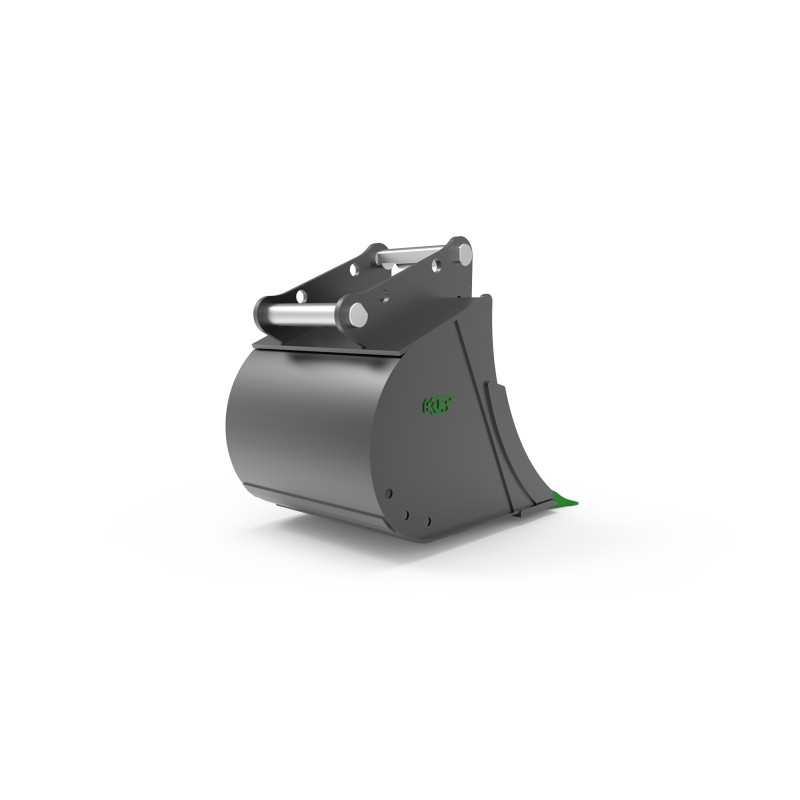

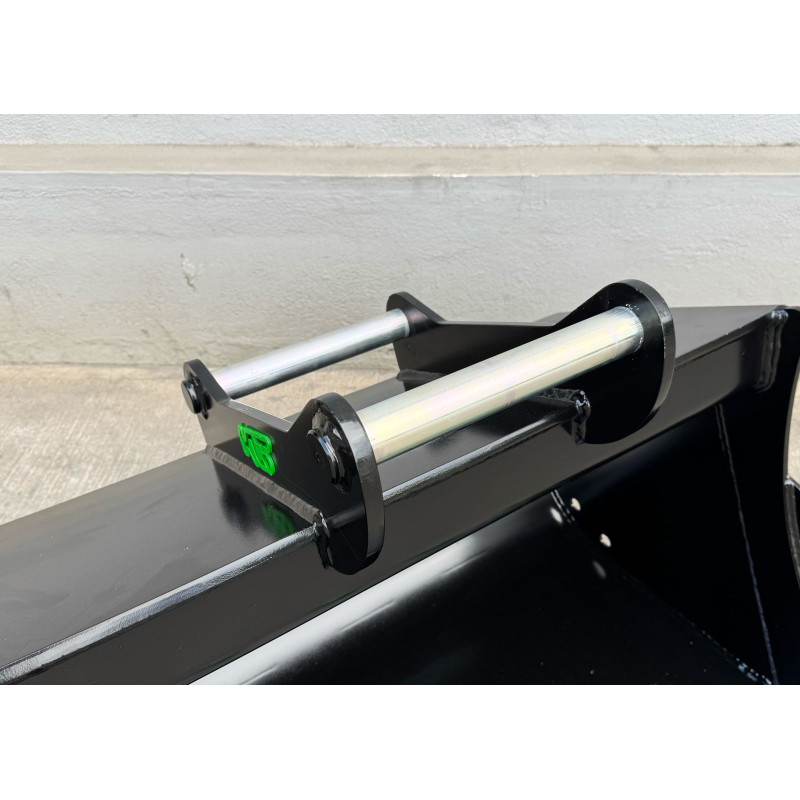

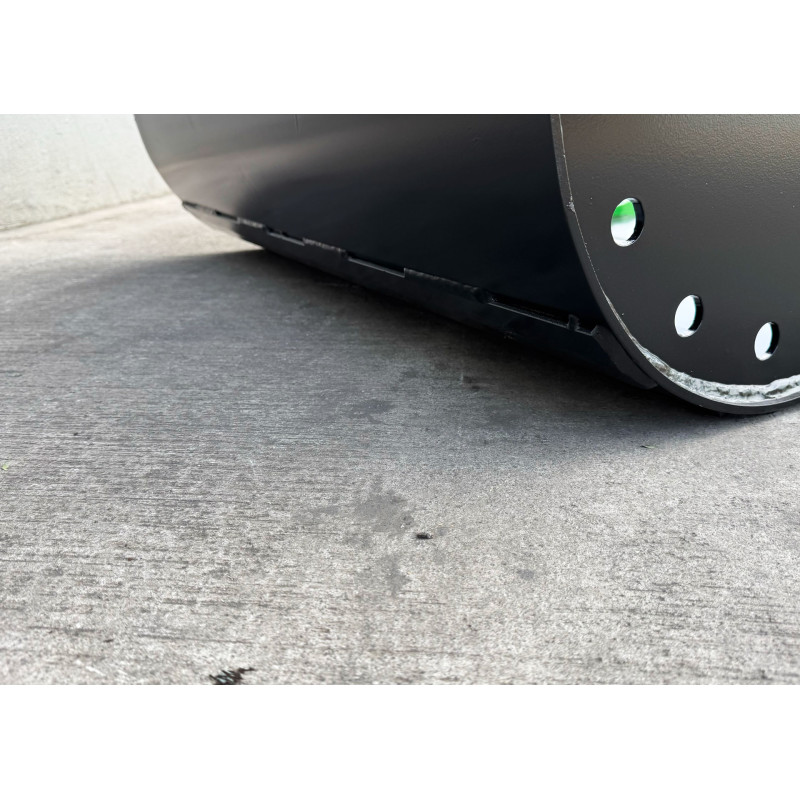

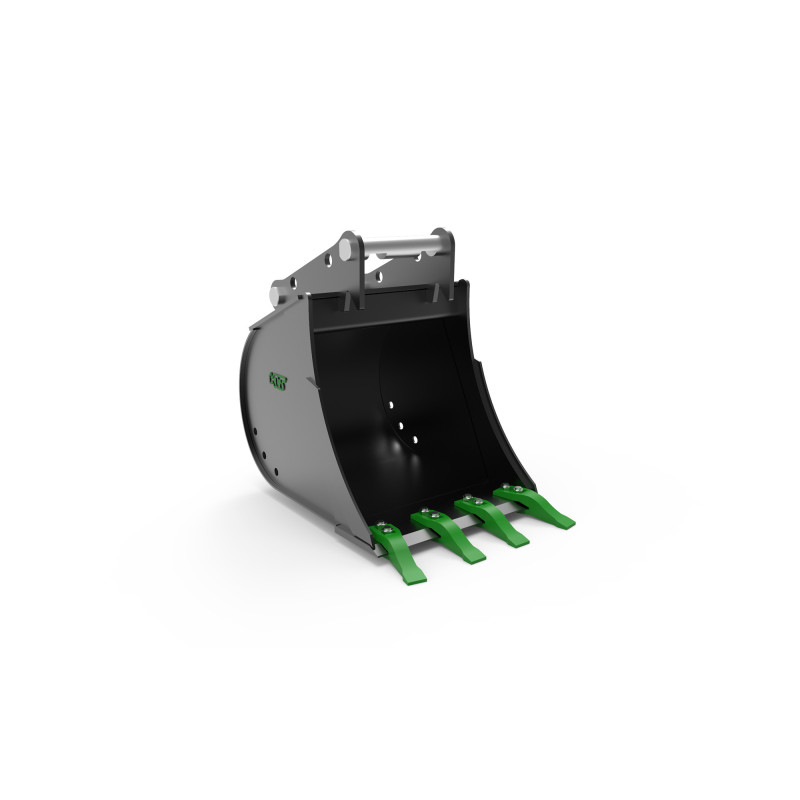

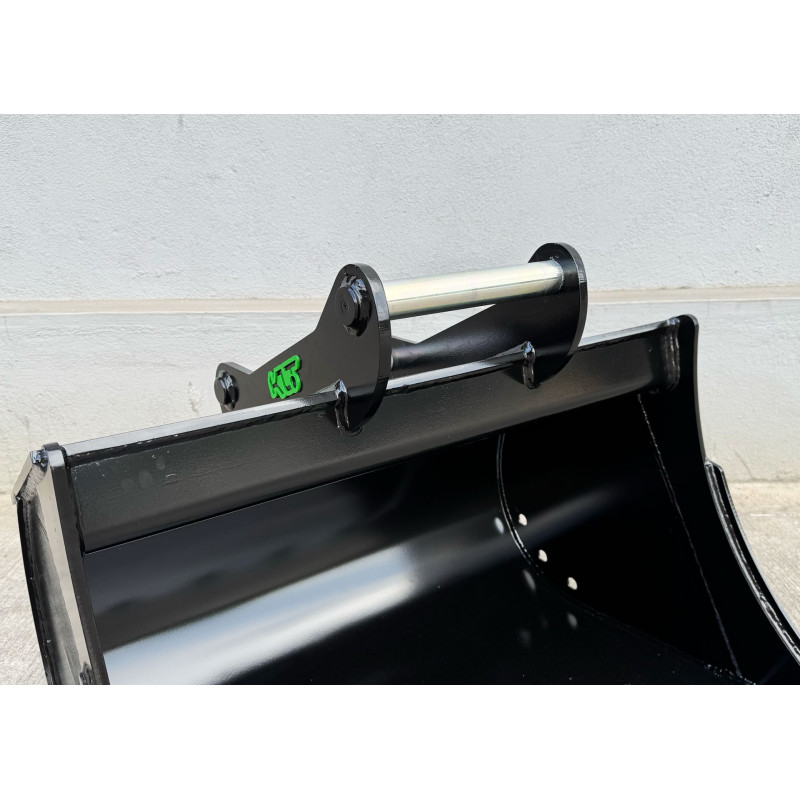

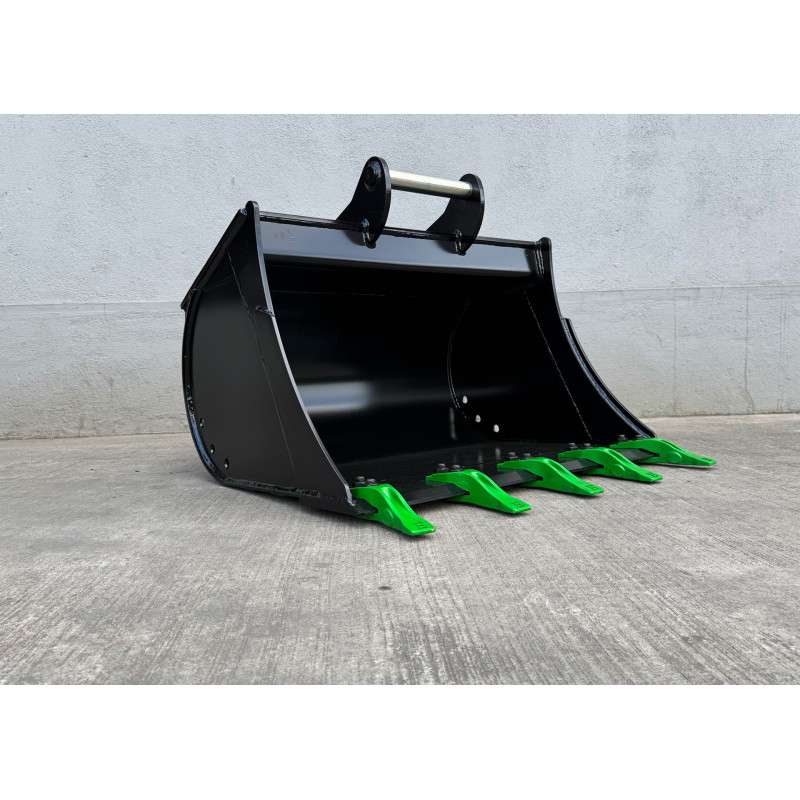

**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 12mm | S355 |
| Rear side plate: | 6 mm | S355 |
| Roll sheet: | 6 mm | S355 |
| Cutting edge: | 20 x 200 mm | HB400 |
| Side cutters: | 8 mm | HB400 |
| Top plate: | 12 mm | S355 |
| Bend plate: | 10 mm | S355 |
| Rear wear strips: | 5 mm | HB400 |
| Type | ||
| Teeth: | E25 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DBS-S5-V1-1000-S45
Data sheet
- Lead time
- up to 48 hours
- For the machine
- 6-7t
7-8t
8-9t - Adapter
- S45
- Width
- 1000mm
- Weight without adapter
- 195kg
- Capacity
- 356 l
- Side/rear plate
- 6mm S355
- Front side plate
- 12mm S355
- Side cutters
- 8mm HB400
- Roll sheet
- 6mm S355
- Rear wear strips
- 5mm HB400
- Cutting edge
- 20x200mm HB400
- Top plate
- 12mm S355
- Bend plate
- 10mm S355
- Number of teeth
- 5pcs
- Type of teeth
- E25
