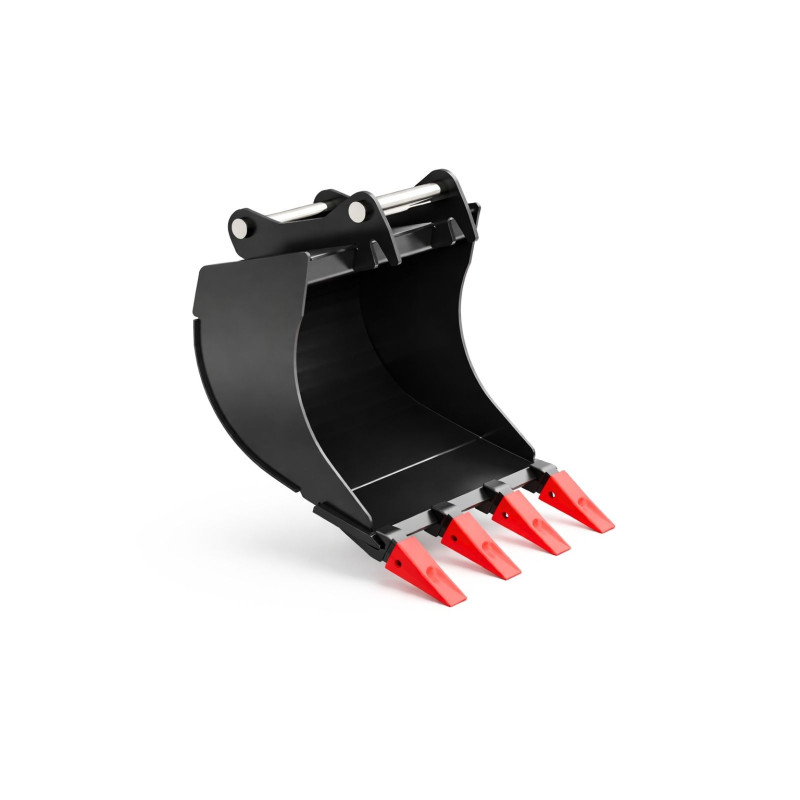

Digging bucket 500mm CW05 class 2-3t
4,178.31 zł
Tax included
CW05-mounted buckets offer a lightweight yet durable construction, making them ideal for everyday use on construction sites.

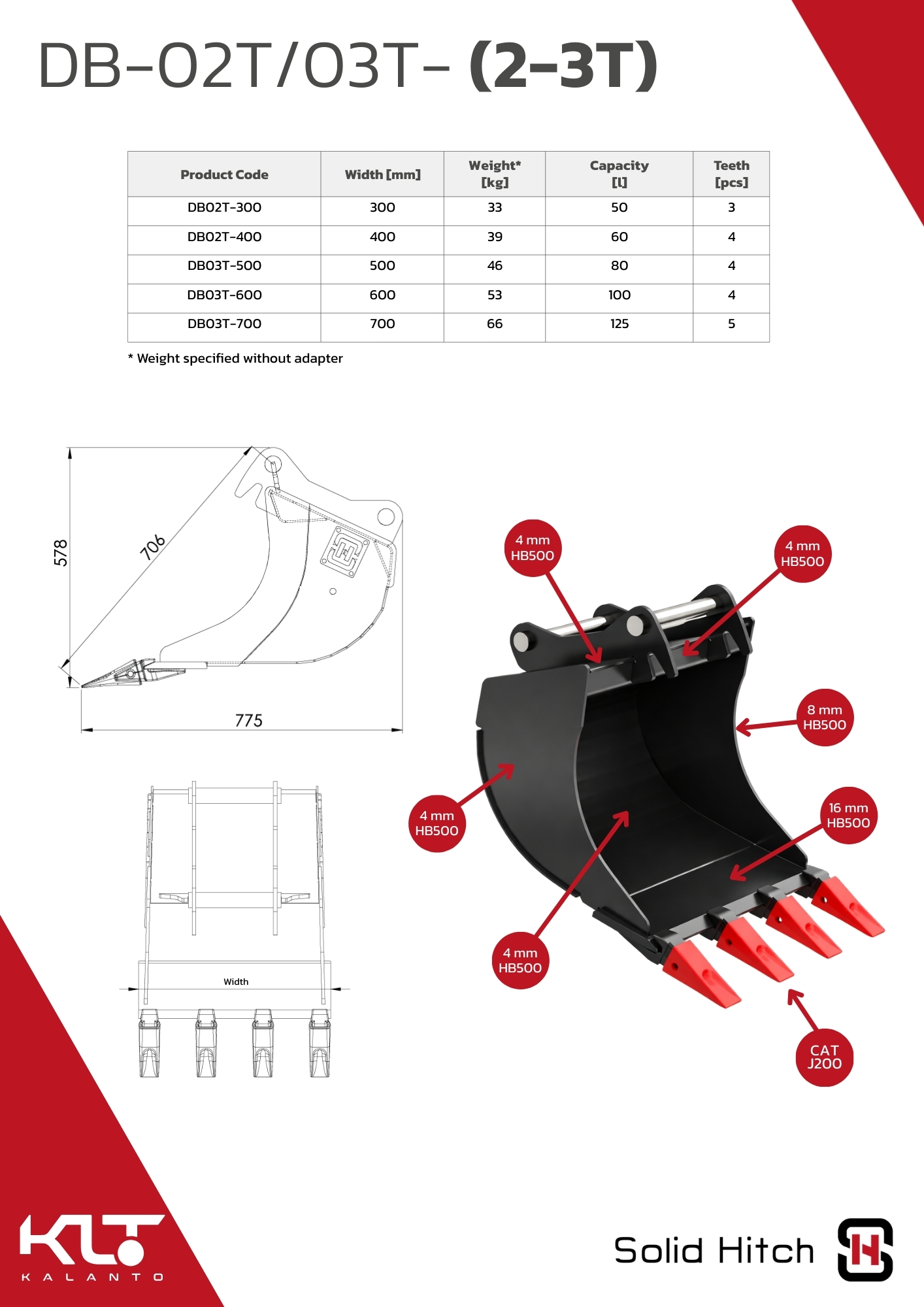

| Width [mm] | Weight* [kg] | Capacity [l] | Teeth [pcs] |
|---|---|---|---|
| 300 | 33 | 50 | 3 |
| 400 | 39 | 60 | 4 |
| 500 | 46 | 80 | 4 |
| 600 | 53 | 100 | 4 |
| 700 | 66 | 125 | 5 |
* The given bucket weight does not include the weight of the adapter.
**The image is for illustrative purposes only. The order refers to the product described in the offer.
The main components are made of the following materials and thicknesses:
| Thickness | Material | |
| Front side plate: | 8 mm | Hardox 500 Tuf |
| Rear side plate: | 4 mm | Hardox 500 Tuf |
| Roll sheet: | 4 mm | Hardox 500 Tuf |
| Cutting edge: | 16 mm | HB500 |
| Top plate: | 4 mm | Hardox 500 Tuf |
| Bend plate: | 4 mm | Hardox 500 Tuf |
| Type | ||
| Teeth: | CATJ200 |
The product is manufactured in accordance with applicable quality and safety standards, including:
DIN EN ISO 9013, DIN ISO 2768-mK, ISO 13920-BF, DIN EN ISO 1302, DIN ISO 13715, AWS D1.1:2020
DB-S2-SH1-500-CW05
Data sheet
- Lead time
- up to 6 business days weeks
- For the machine
- 2-3t
- Adapter
- CW05
- Width
- 500mm
- Weight without adapter
- 46kg
- Capacity
- 80 l
- Side/rear plate
- 4mm Hardox 500 Tuf
- Front side plate
- 8mm Hardox 500 Tuf
- Roll sheet
- 4mm Hardox 500 Tuf
- Cutting edge
- 16mm HB 500
- Top plate
- 4mm Hardox 500 Tuf
- Bend plate
- 4mm Hardox 500 Tuf
- Number of teeth
- 4pcs
- Type of teeth
- CATJ200
